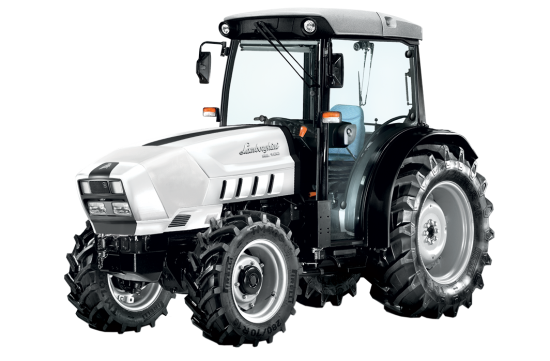

RS-RV

RS-RV

80 – 90.3 – 90 – 100 - 110
Unstoppable agility and performance

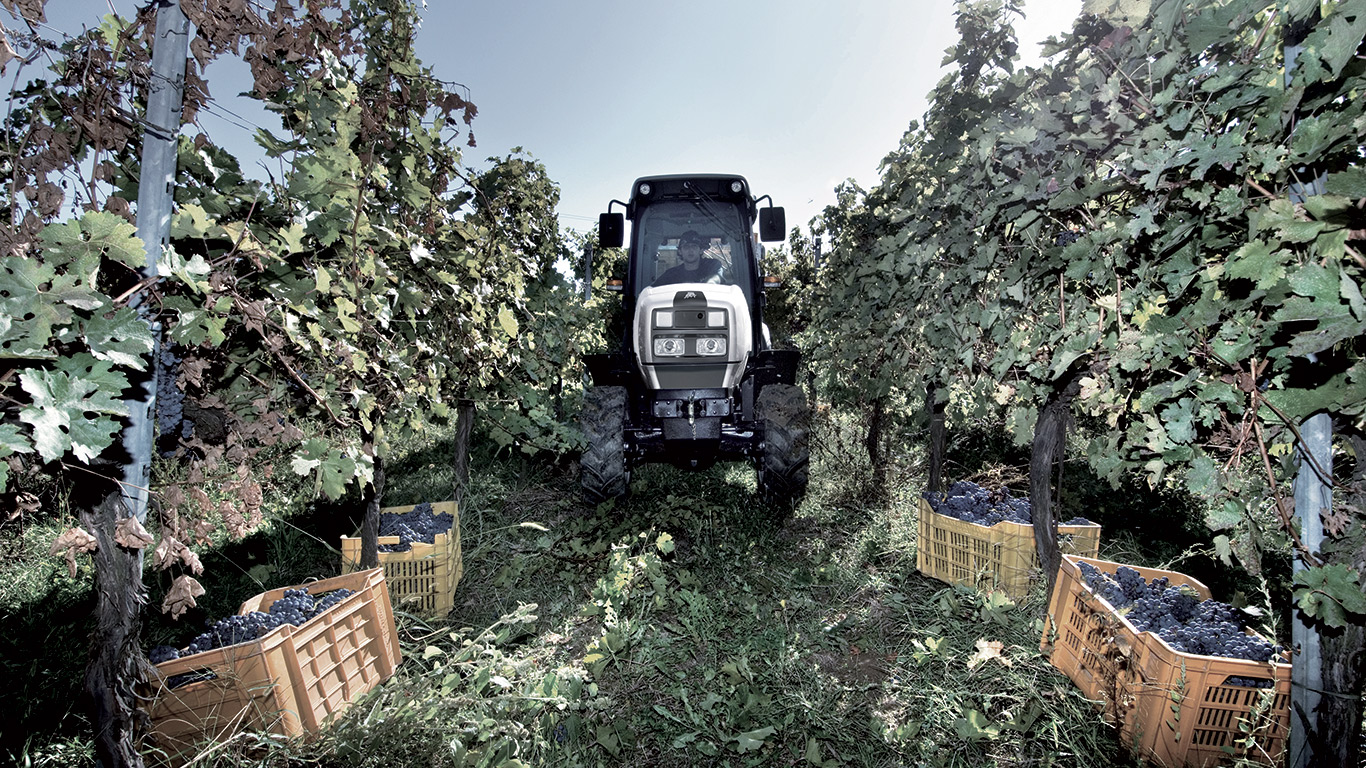

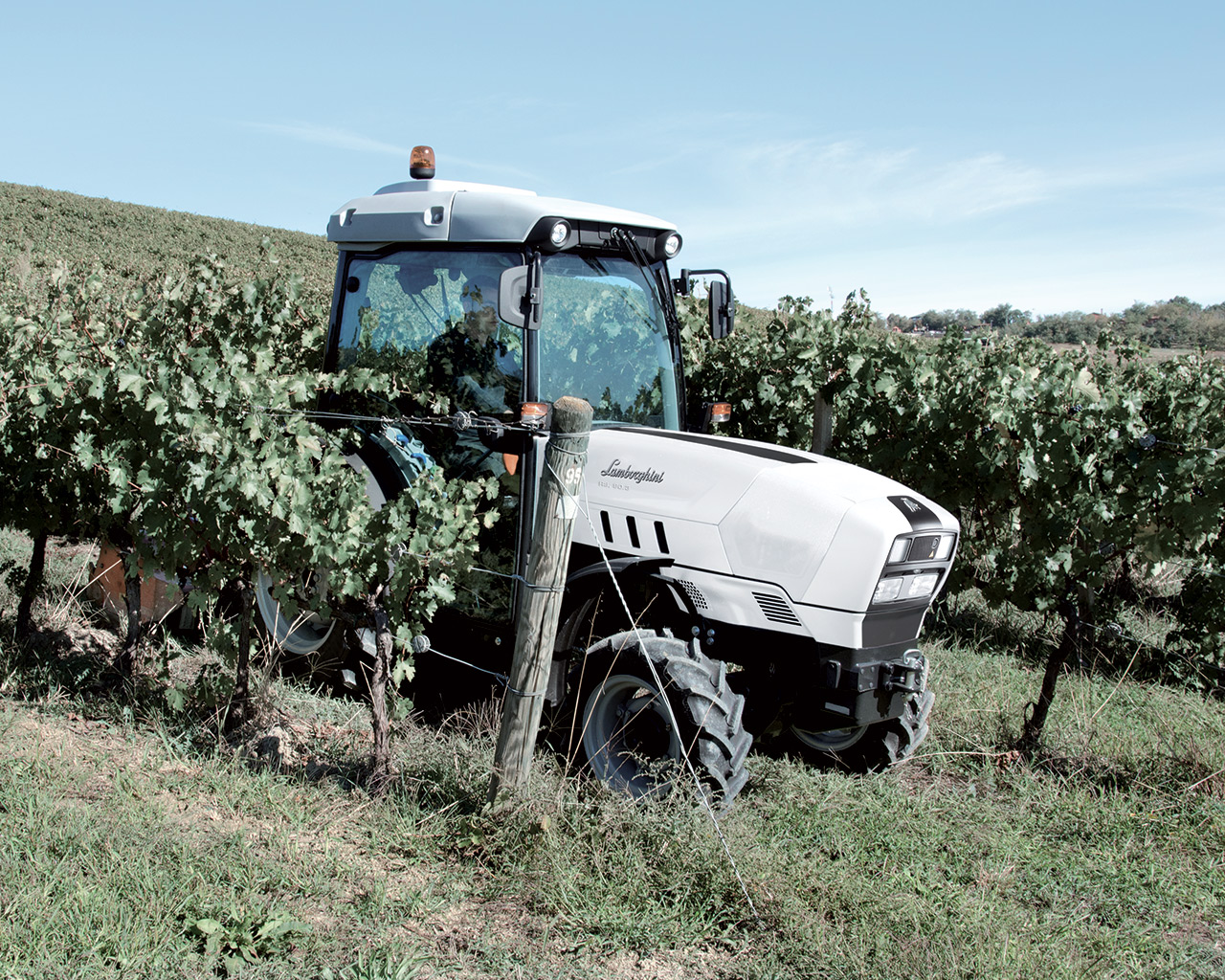

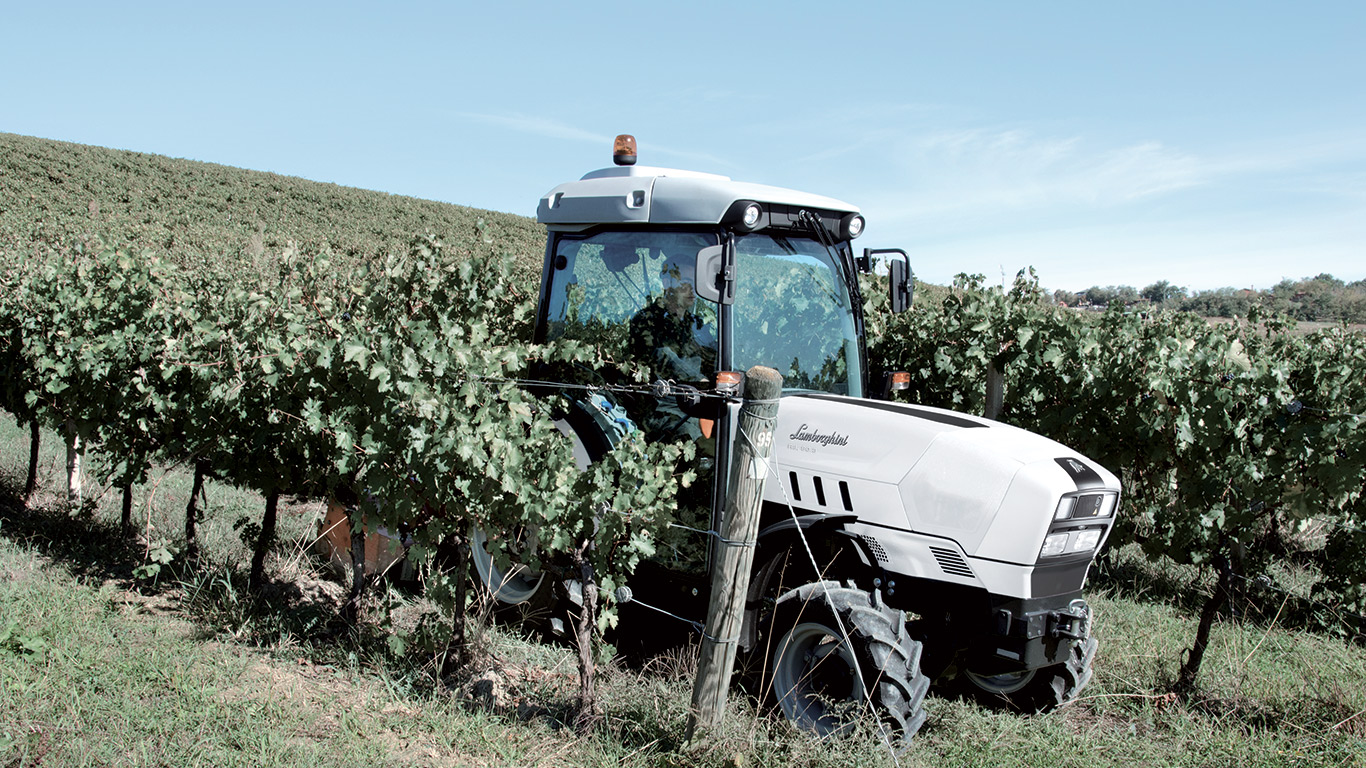

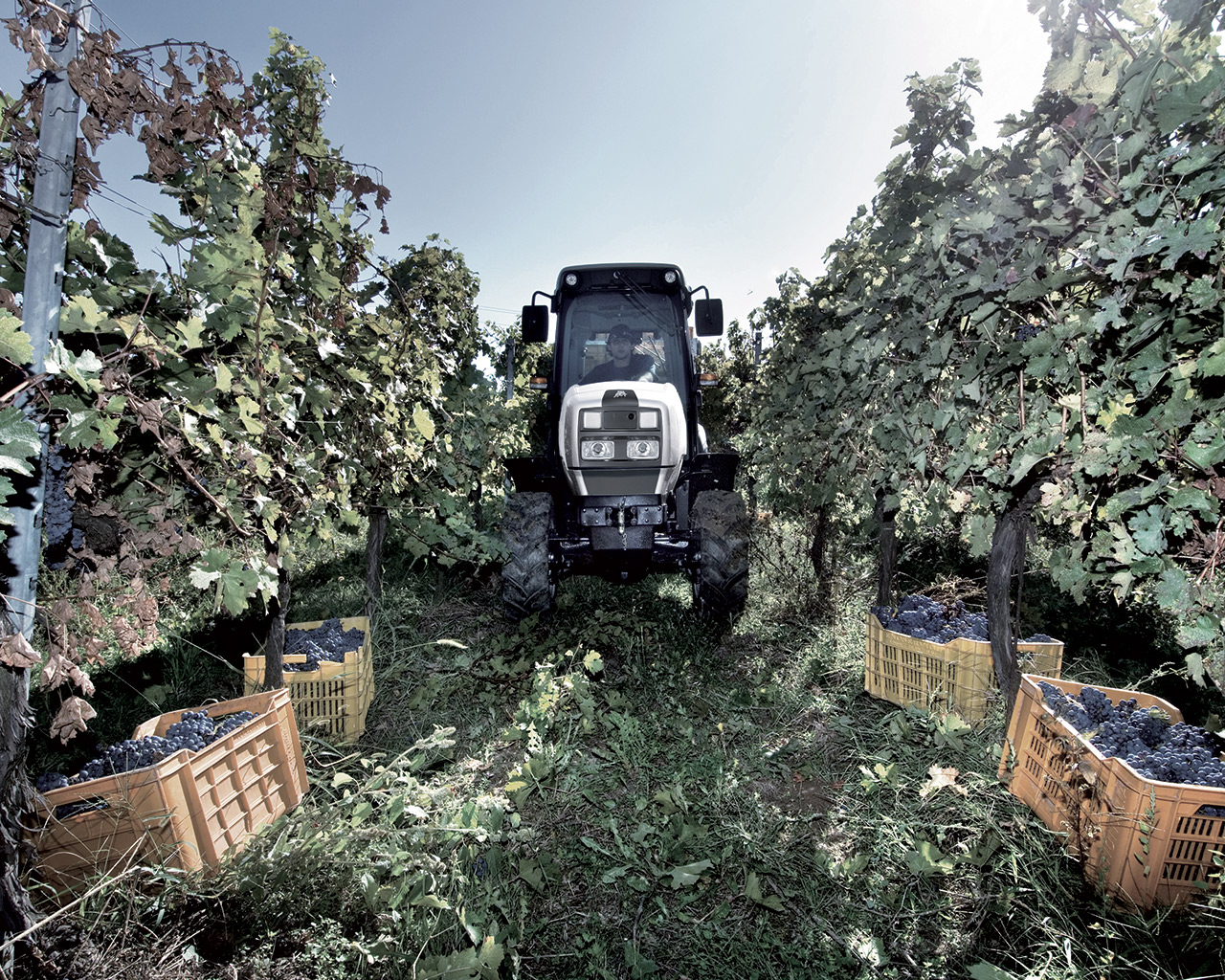

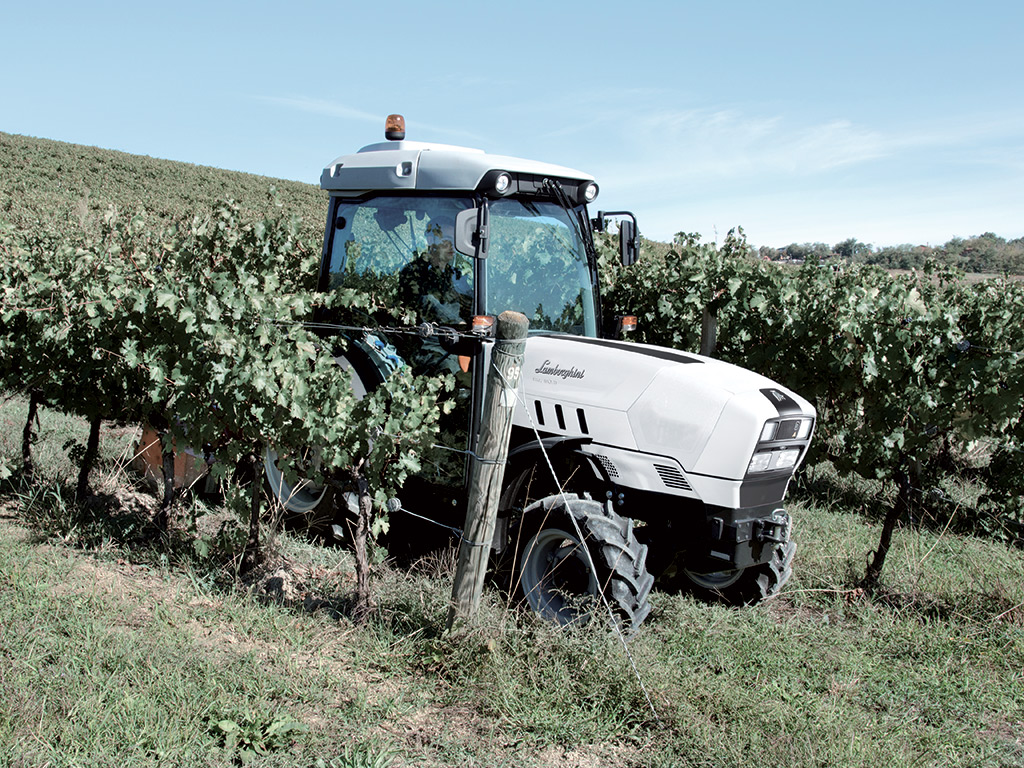

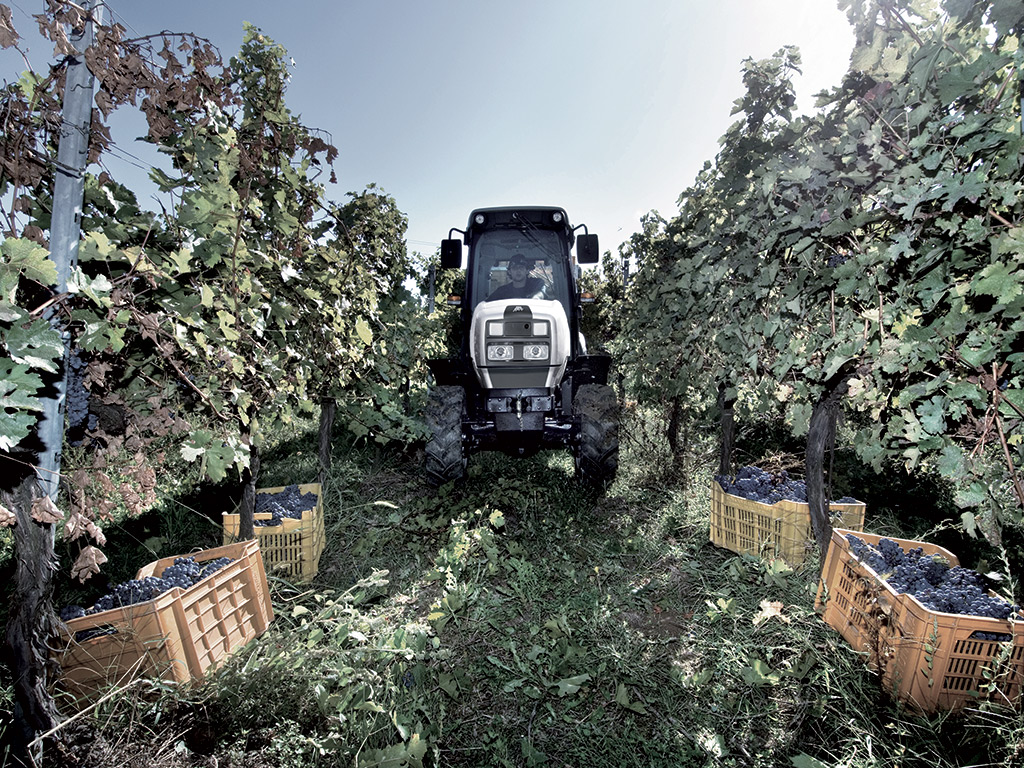

Small in size but big on performance and conceived specifically for working in fruit orchards and vineyards.Tractors with a short wheelbase the ideal steering angle for working in restricted spaces limited height and compact dimensions. Designed for using implements with high power demands and where absolute precision is vital.

Design

Attention to detail in the design of every single component for total functionality and optimised space use.
Read more   +

Engine

Engines conceived and built to deliver the best, drawing from Lamborghini's extensive experience.
Read more   +

Transmission

Transmissions developed with state of the art technology for unrivalled versatility.
Read more   +

Hydraulic system

A choice of many different configurations for a flexible hydraulic system that caters for any need.
Read more   +

Cab

Soundproofed, pressurised cab, in an extraordinary fusion of comfort, ergonomics and design.

SpecificationsExpandCollapse

Technical sheetExpandCollapse

8090.390100110
Maximum power (hp/kW)82/6085/6390/6696/71106/78
Homologated power (2000/25/EC) at rated engine speed (hp/kW)82/6085/6390/6696/71106/78
Maximum torque (Nm)310345340373390
Cylinders / displacement (n°/cc)3/30004/40003/30004/40004/4000
Lifting capacity (kg)30003000300030003000
Minimum width (mm)11601160116011601450

TechnologiesExpandCollapse

ELECTRONIC ENGINE GOVERNOR

The system uses sensors to monitor a set of engine parameters, and optimises engine function by adjusting injection accordingly. Different engine speeds can also be set and recalled simply from a dedicated button.

Sense Clutch

Hydraulic reverse shuttle with two multiplate wet clutches (one clutch pack for each direction) and an electronic control unit. Efficient, robust, reliable and flexible.

Stop & Go

A system maximising the potential of the Sense Clutch power shuttle for superlative manoeuvrability. The driver can temporarily stop the tractor using the brake pedals alone.

THREE-STAGE POWERSHIFT

Designed to offer the most effective drive ratio in every possible situation. Three powershift speeds are available for each of the mechanical gears, letting the driver alter tractor speed with no interruption in torque delivery.

ALL-WHEEL BRAKES

Integral all-round braking system consisting of multiple wet disc brakes integrated in the front and rear axles. Excellent safety even when working on steep gradients.

B100

Designed with specific technical solutions and constructed with special materials, the injection system is fully compatible with fuels containing up to 100% biodiesel.

HRT

Touches hidráulicas para a gestão da antecipação da injecção. Quando o óleo está frio, as touches elevam ligeiramente a bomba para permitir uma injecção antecipada: rendimento optimizado logo à partida e eliminação dos fumos brancos provocados pelo arranque a frio dos motores.
