RF

RF

80 – 90 – 100 – 110

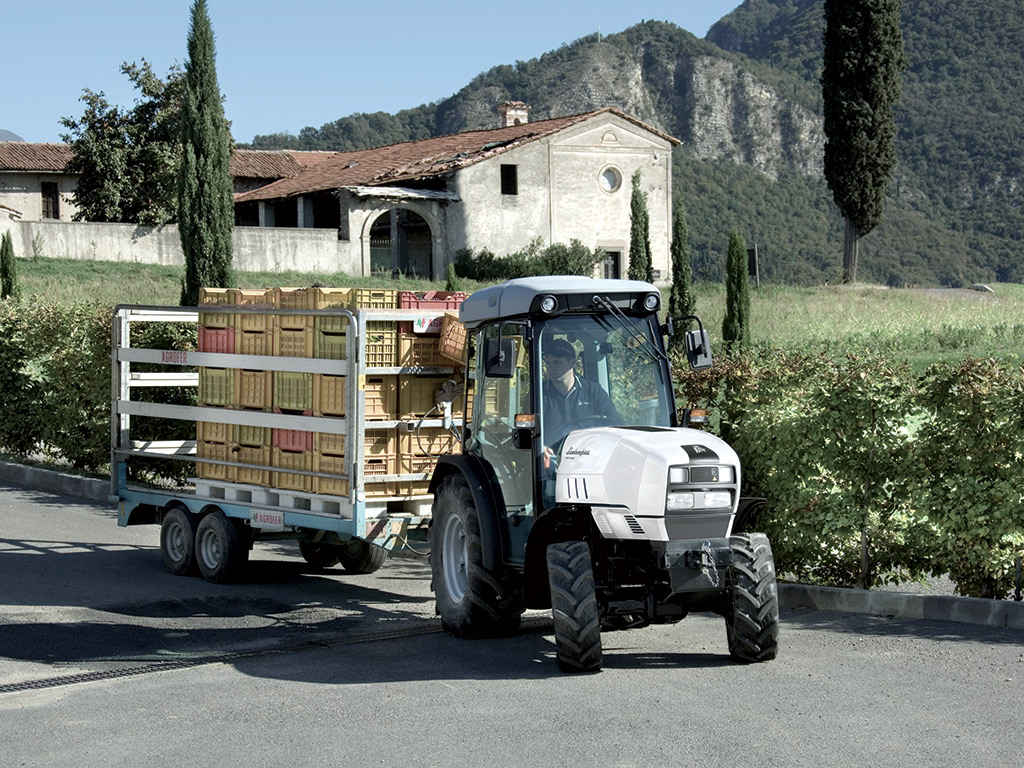

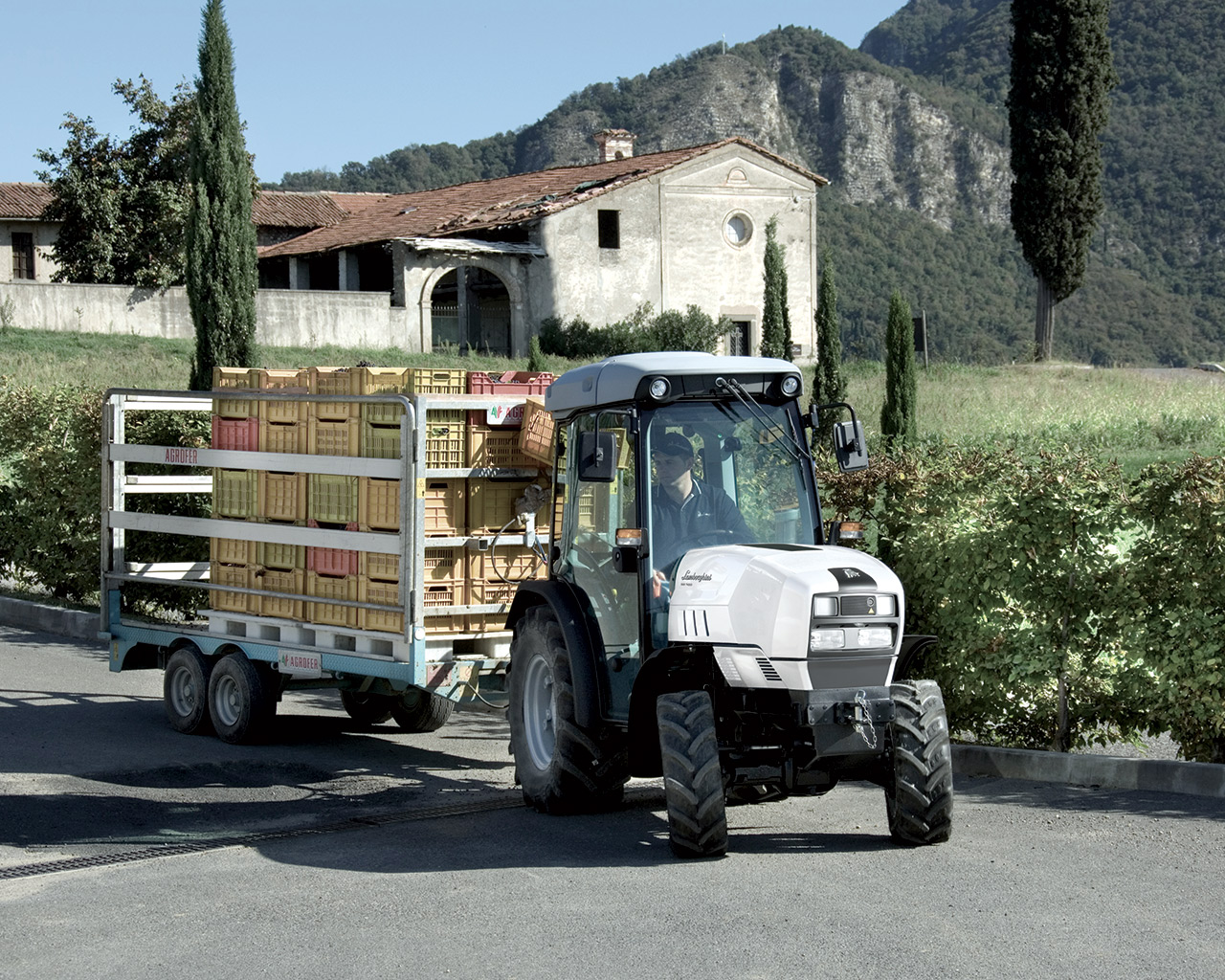

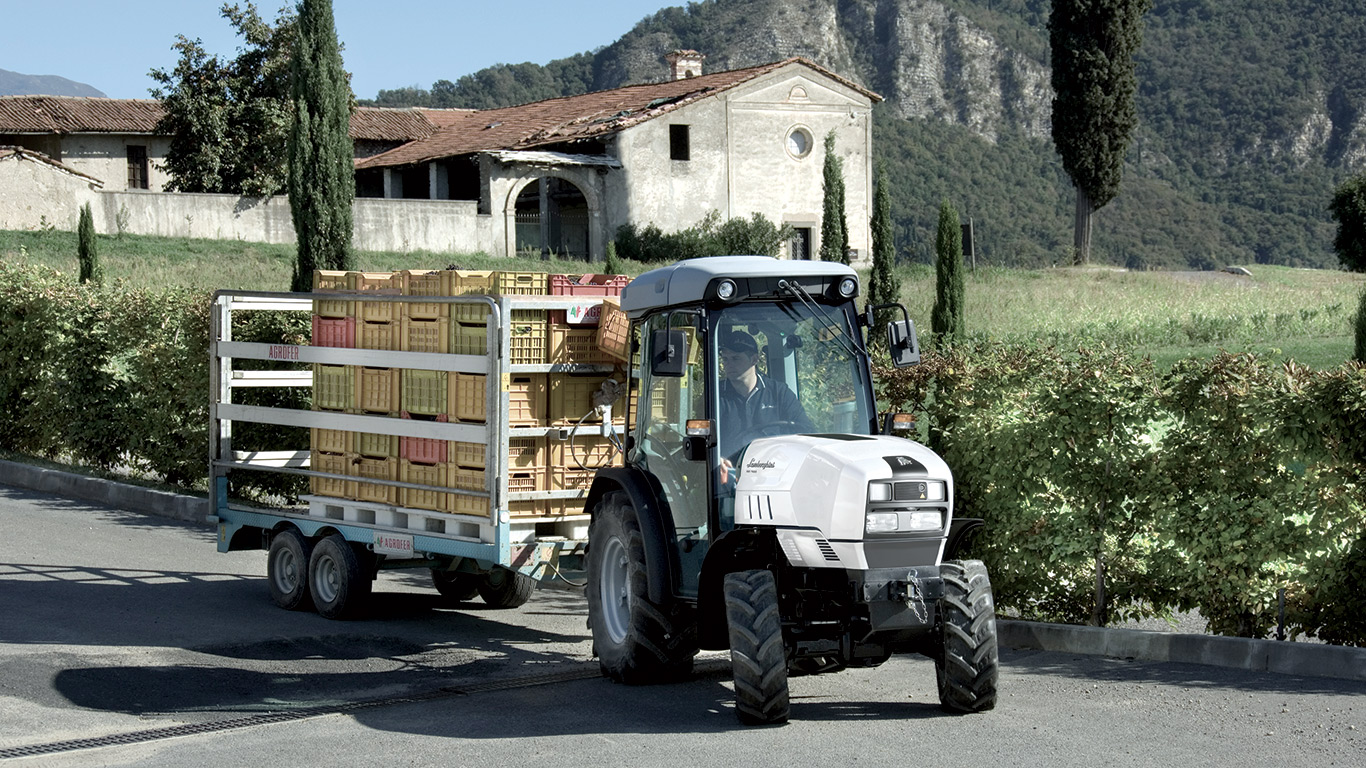

A compact tractor packing impressive power

Boasting extremely compact dimensions an incredibly tight steering angle (55 degrees with four wheel drive and 70 degrees with two wheel drive) and superlative manoeuvrability the RF is the ideal tractor for working with maximum productivity in the most limited spaces. Conceived to work in the vineyard and fruit orchard with a limited overall height low centre of gravity and impressive traction even in the most challenging terrain conditions this tractor delivers extraordinary results.

Design

Intelligently designed not only to maximise performance but also to significantly minimise overall dimensions.
Read more   +

Engine

Engines conceived and built to deliver the best, drawing from Lamborghini's extensive experience.
Read more   +

Transmission

Transmissions developed together with the Engineering Division of SDF, with class-beating solutions for specialised applications.
Read more   +

Hydraulic system

A hydraulic system available in a wide choice of configurations: the right solution for every need.
Read more   +

Cab

Driver zone with optimised space usage for total manoeuvrability without sacrificing comfort.
Read more   +

Technical sheetExpandCollapse

8090100110
Maximum power (hp/kW)82/6085/6396/71106/78
Homologated power (2000/25/EC) at rated engine speed (hp/kW)82/6085/6396/71106/78
Maximum torque (Nm)310345373390
Cylinders / displacement (n°/cc)3/30004/40004/40004/4000
Lifting capacity (kg)3000300030003000
Minimum width (mm)1450145014501450

TechnologiesExpandCollapse

ELECTRONIC ENGINE GOVERNOR

The system monitors a set of engine parameters, and optimises engine function by adjusting injection accordingly. Automated for total simplicity: lets the driver set, store and recall the most appropriate engine speed for the job in hand.

Sense Clutch

Hydraulic reverse shuttle with two multiplate wet clutches and an electronic control unit.

Stop & Go

A system maximising the potential of the Sense Clutch shuttle for superlative manoeuvrability. Ideal for jobs involving frequent stops and starts.

Over Speed

Optimised power curve usage, reduced consumption and improved driver comfort by maintaining lower engine speeds and using the engine at speeds close to maximum torque.

3-STAGE POWERSHIFT

Designed to offer the most effective drive ratio in every possible situation. Three power shift ranges are available per gear: once the most appropriate range is selected, the system automatically varies engine speed in response to draught.

ALL-WHEEL BRAKES

Four-wheel integral braking system, with: oversized rear multi-disc brakes on both of the rear differential output shafts, and hydraulically operated inboard front brakes.

B100

Designed with specific technical solutions and constructed with special materials, the injection system is fully compatible with fuels containing up to 100% biodiesel.

HRT

Hydraulic tappets for injection timing control. When the oil is cold, the tappets increase valve lift slightly to advance the injection timing: this ensures optimum efficiency as soon as the engine is started and eliminates white smoke.
