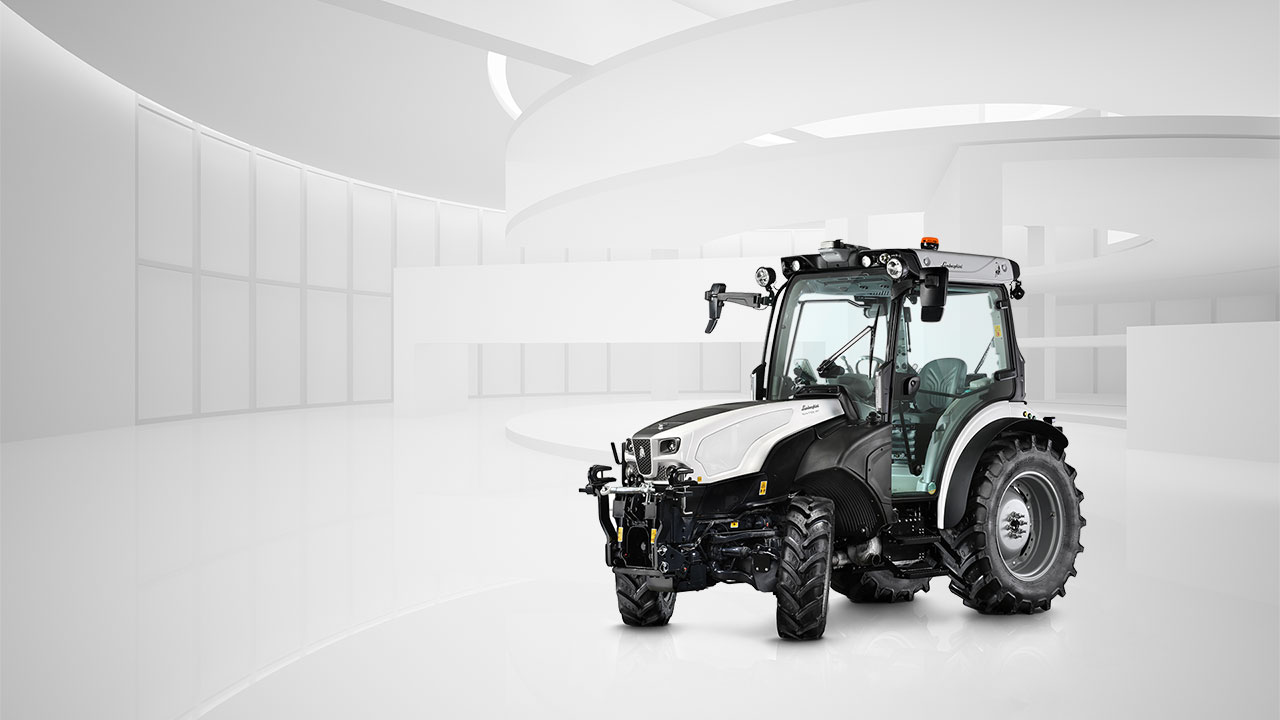

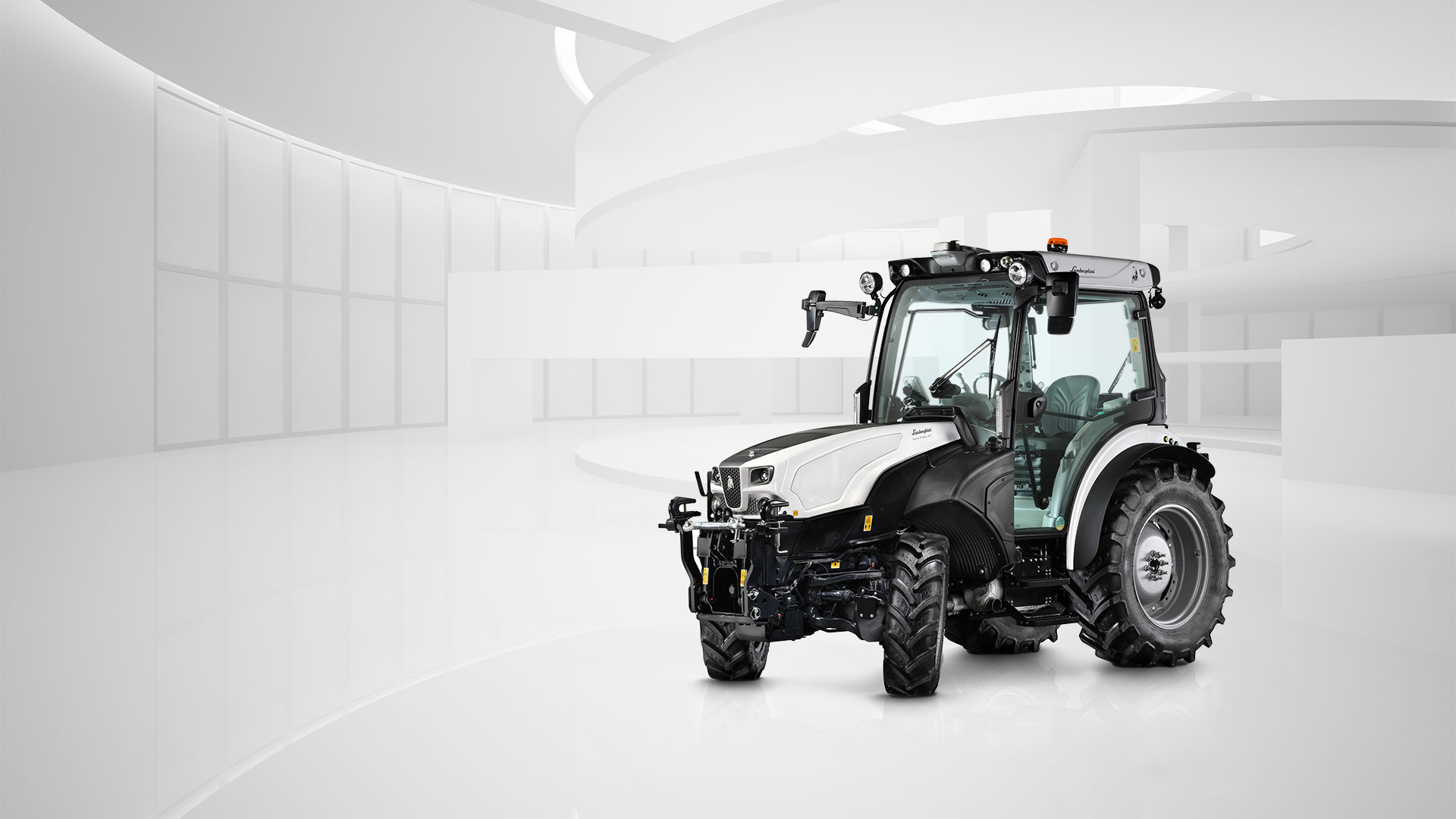

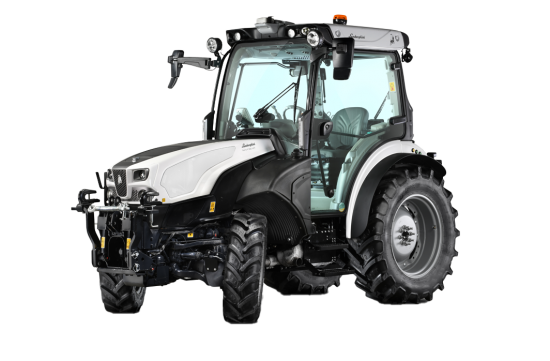

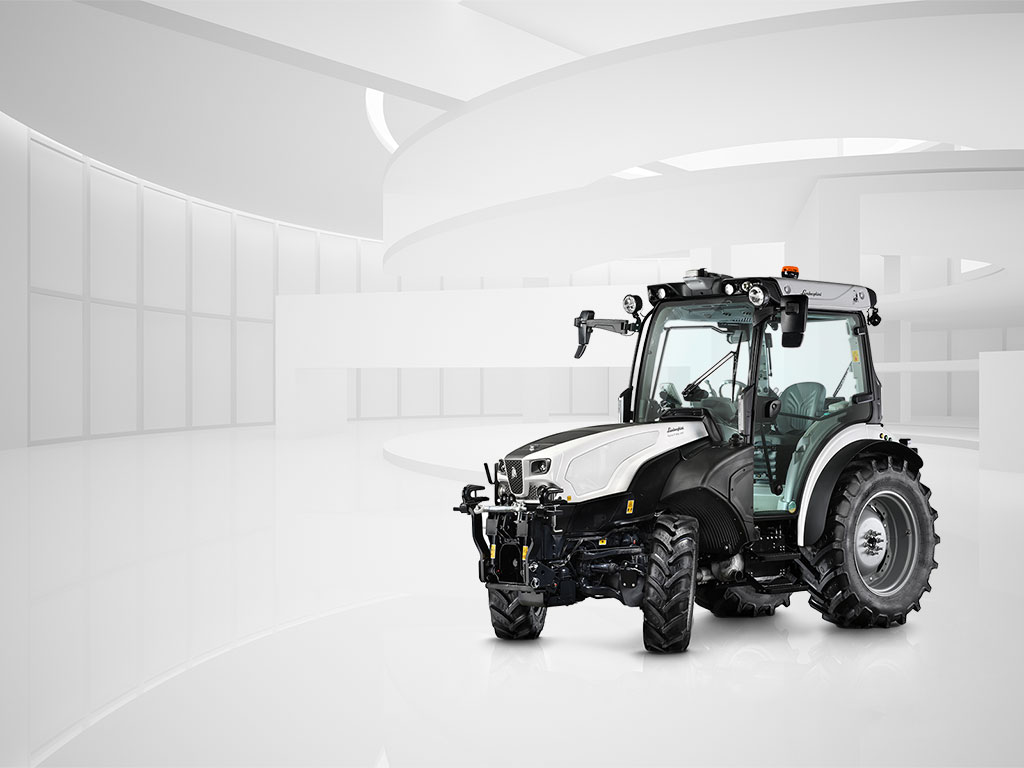

Spire F VRT Stage V

Spire F VRT

90-95-100-105-115
Hi-tech content and style with ultra-compact dimensions.

Lamborghini continues its tradition as a constructor capable of packing performance, productivity and style into a specialised tractor. The result is the revised Spire F VRT series of machines for orchard and vineyard, and for all other high-tech specialised applications, where the smallest member in the Lamborghini family truly shines.

Design

Spire F VRT - machines created to excel in even the most challenging conditions.
Read more   +

Engine

FARMotion Stage V: a potent, green powerplant.
Read more   +

Transmission

VRT transmission and a host of PTO configurations. Extraordinary traction and PTO power in every situation.
Read more   +

Hydraulic system

Incredibly flexible hydraulics. The Spire F VRT delivers enough hydraulic power for even the most challenging tasks.
Read more   +

Cab

Not just a cab, a fully fledged control centre. On a Spire F VRT, every control is in exactly where it should be.
Read more   +

iMonitor 3

Full control of the tractor and its work.
Read more   +

SDF Guidance

Steering systems precise to the centimetre.
Read more   +

ISOBUS TIM

Simplifies communication between tractor and implement.
Read more   +

SDF Data Management

Customised data management solutions.
Read more   +

SDF Fleet Management

Control your fleet.
Read more   +

TOTAL EFFICIENCY

And for even more impressive comfort and productivity, the tractors may be equipped with independent wheel front suspension and 4-wheel steering.
Read more   +

Technical sheetExpandCollapse

9010095105115
Maximum power (hp/kW)67/9175/10270/9575/10685/116 (93/126 overboost)
Homologated power (2000/25/EC) at rated engine speed (hp/kW)63,5/8671,1/9766,4/9074/10180,6/110
Maximum torque (Nm)372417389433472
Cylinders / displacement (n°/cc)3/2887
Lifting capacity (kg)3800
Minimum width (mm)1544-1671
Weight with cab (kg)3290-4105

TechnologiesExpandCollapse

ASM

An electronic system which automatically engages and disengages drive to the front wheels and the differential lock in relation to steering angle, speed and rear lift position (depending on model).

SDD

Steering double displacement. This is a dual rotor steering pump activated and deactivated using a button. A dedicated solenoid valve changes the displacement of the steering pump. This halves the number of steering wheel turns necessary to perform manoeuvres.

Cat 4 cabin

With Cat.4 filtration according to EN 15695 standards, the cab offers protection against dust, aerosols and vapours. This protection means that the cab qualifies as PPE. The driver can work safely without wearing additional masks and overalls during spraying.

Jolly Buttons

To the freely programmable buttons the operator can assign the power shuttle, the fast steering system, the rear lift, the hydraulic valves and even more functions. This makes the daily work intuitive and extremely comfortable.

Xtend

XTEND allows the display area to be extended easily, with a tablet, for example. You can either display the guidance application or even fully control all ISOBUS-UT functions – with your tablet! It is a cost-efficient and user-friendly alternative solution to a second terminal.

AutoTurn

The Auto-Turn feature allows automatic turns to be performed on the headland. You as the driver can decide which track to steer into. Different patterns are available – whether to skip lines or fill plots. Benefit from added convenience, decreased soil compaction on the headland and time saved!
