R3 80-85-90-95-100

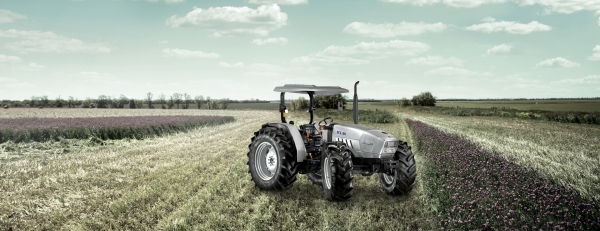

Cross is the tractor which, in addition to Lamborghini Trattori unmistakable character, ergonomics and comfort, combines reliability, excellent performance, simplified maintenance and low operating costs. Strong and rational at the same time, it is offered in the 75-100 HP versions, with 2WD or 4WD, and represents the ideal solution for those looking for a versatile and easy-to-use tractor which you can demand a lot from in any usage conditions.
Additional Info
- Subtitle 75 - 80 - 85 - 90 - 95 - 100
- claim Simplicity in Lamborghini style
-
design intro
Rigorous and functional design
-
design
Like all Lamborghini tractors, also Cross was designed in collaboration with Giugiaro Design which, in addition to the aesthetics, focussed on the functionality and ergonomics of the controls, in addition to easy access to the mechanical parts.
-
engine intro
A durable and generous engine
-
engine
Cross adopts the most reliable engine of the Lamborghini range, specifically designed to endure the most intense stress: the tried and tested 75, 85 and 90 HP SDF 1000, a 4000 cc 4-cylinder aspirated and turbo engine with independent high pressure pump. A robust and tireless engine that ensures optimum performance and reduced fuel consumption on any terrain and in any conditions.
-
transmission intro
A reliable transmission and lots of safety
-
transmission
Cross adopts as standard a 4-speed 3- stage (12 +12) synchronised transmission which already provides the pace best suited to any activity. For more versatility, options include a 16 +16 transmission or the 40 km/h version with 20+20 transmission. Also the shuttle is fully synchronised. The self-locking differential and hydrostatic wet disk brakes on 4 wheels allow both routine operations as well as the most demanding jobs to be performed in safety.
-
hydraulic system intro
Full control and easy operation
-
hydraulic system
The hydraulic system, with a capacity of up to 56 l/min, is among the most powerful in the category and allows optimal use of any equipment. The steering, controlled by an independent pump, is fluid and light and offers easy vehicle control both in the field and on the farm. The high level of operability of the tractor is ensured by the rear lift that can lift up to 4,700 kg and by the completely independent 540-1000 rpm PTO with dry clutch, also available with power socket.
-
cab intro
Essential comfort
-
cab
According to the Lamborghini style, albeit in the simplicity of the design, Cross offers superior comfort for its category, with a comfortable driving position and controls ergonomically positioned at the driver's side for easy, intuitive manoeuvring.
- Sheet Version number 75 Stage I|80 Stage II|85 Stage I|90 Stage II|95 Stage I|100 Stage II
- Maximum power (hp/kW) 74/54.5|74/54.7|84/62|88/64.6|95/69|95/69
- Maximum torque (Nm) 256|260|283|350|321|375
- Cylinders / displacement (n°/cc) 4/4000
- Lifting capacity (kg) 3450|3450|3084|3084|3084|3084
- Weight with ROPS (kg) 2775 kg (4WD) - 2450 kg (2WD) | 2775 kg (4WD) - 2450 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD)
- TECHNOLOGIES ALL-WHEEL BRAKES
- Weight with ROPS (kg) 2775 kg (4WD) - 2450 kg (2WD) | 2775 kg (4WD) - 2450 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD) 3275 kg (4WD) - 2870 kg (2WD) | 3275 kg (4WD) - 2870 kg (2WD)
-
Categorization
- Categorization Power Range Min 75
- Categorization Power Range Max 100
- Categorization Track Width Min 2245
- Categorization Track Width Max 2360
- Categorization Cylinders n. 4
- Categorization Trasmission MECHANICAL
- Stock Availability N
Cross
Italian Products Expo 2014
Written by Lamborghini Trattori South East Asia
From the 7th to the 10th of August Lamborghini trattori is glad to present its producs at the International Fair in Yangon, Myanmar.
Engineered for total compatibility with tractors.
The perfect balance between performance and compact dimensions.
Additional Info
-
Categorization

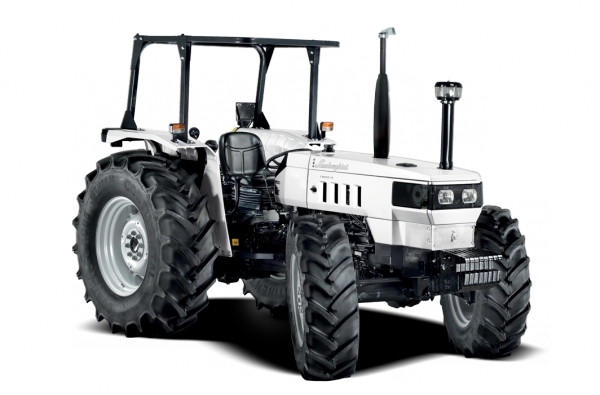

R3 tractors are conceived to be functional and easy to use in the many different applications demanded by a farm. Featuring liquid cooled engines, high pressure fuel injectors and a mechanical reverse shuttle, and offered with 2 or 4 wheel drive, R3 tractors are equipped with hydraulic system with a 56 l/m pump and offer a particularly comfortable driver zone. While essential in their simplicity, these tractors offer outstanding performance for the price.
Additional Info
- Subtitle 80 - 85 - 90 - 95 - 100
- claim Essential simplicity
-
design intro
Lamborghini in every detail.
-
design
The perfect size and compact forms for excellent manoeuvrability: boasting the typical attention to detail found in every Lamborghini tractor, R3 tractors stand out from the crowd in any situation.
-
engine intro
85 and 95 hp engines for outstanding performance.
-
engine
The R3 tractor range is equipped with Tier I and Tier II, 4.0 litre, 4 cylinder engines in naturally aspirated (80/85 hp) or turbocharged (95/100 hp) guise to cater for the specific needs of different agricultural applications.
Featuring high pressure injectors, these technologically advanced engines deliver the performance needed while keeping fuel consumption low. -
transmission intro
A simple and versatile transmission.
-
transmission
To offer the best performance possible combines with superb manoeuvrability in the field, the R3 tractor range is offered with 2 wheel drive with a synchronised gearbox and 12/12 speeds, or with 4 wheel drive with a synchronised 40 Km/h gearbox and 15/15 speeds (or 20/20 for version with creeper). The PTO is completely independent and offers two selectable speeds (540 and 1,000 rpm).
-
hydraulic system intro
An efficient, perfectly calibrated hydraulic system.
-
hydraulic system
The hydraulic system uses a 56 l/min fixed displacement pump, which delivers a powerful flow of oil sufficient for any need. The system may include up to three auxiliary valves, for superlative flexibility in any agricultural application. The lift has a capacity of up to 4,200 kg.
-
cab intro
A comfortable and easily accessible driver zone.
-
cab
The easily accessible driver zone is equipped with comprehensive instrumentation ensuring simple, intuitive operation. The driver may adjust the steering wheel and seat as preferred for maximum comfort in all working conditions.
- Sheet Version number 80|85|90|95|100
- Maximum power (hp/kW) 75/55 | 85/62.5 | 90/66 | 92/67.7 | 94.6/69.9
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 74/54.7 | 85/62.5 | 87/64.6 | 92/67.7 | 96/70
- Maximum torque (Nm) 257 | 277 | 344 | 330 | 375
- Cylinders / displacement (n°/cc) 4/4000 | 4/4000 | 4/4000 | 4/4000 | 4/4000
- Lifting capacity (kg) 4200
- Minimum width (mm) 1950 | 1950 | 2050 | 2050 | 2050
- Weight with ROPS (kg) 3000 | 3100 | 3200 | 3200 | 3200
-
Categorization
- Categorization Power Range Min 80/85
- Categorization Power Range Max 95/100
- Categorization Track Width Min 1600
- Categorization Track Width Max 2100
- Categorization Cylinders n. 4
- Categorization Trasmission MECHANICAL
- Stock Availability N
