We know it’s fundamental to always keep an overview of all work processes. As keeping documentation is becoming more and more important, the iMonitor3 helps you organise your data according to a very clear and simple structure. This ensures that the management of fields (including boundaries), guidelines and all tasks are accomplished in a coordinated manner. Thanks to our solutions, keeping relevant documentation is no longer a chore but an opportunity to improve work processes, in financial terms, too.
No matter if you’re a farmer, contractor or any other user – working with standard file formats is particularly important. It's a huge advantage: it makes data exchange between different end points very easy. The benefits are:
- Import and export data for your guidance system
- Manage your tasks to have an overview and insight into the data of work processes
- You can complete your documentation and send it to any end point
- Share data between other farmers or contractors .
The iMonitor3 strictly works with open and standardised file formats, which guarantees the highest reliability: - shape: using this data format you can import and export field boundaries and application maps
- ISO-XML: the iMonitor provides ISOBUS TC-BAS functionality which ensures that the documentation is in ISO-XML data format. This includes all total values that are relevant to the activity performed. The benefit obtained is compatibility for sharing data, e.g. between a farm management system through the iMonitor or with other manufacturers and providers. Tasks can easily be imported to the task controller of the iMonitor3 and/or the finished documentation can be exported afterwards. Thanks to this standardised exchange format, you as a customer can decide which software product best suits your business. In combination with a corresponding software application you can share data with others:
- Farm master data o Jobs (taskdata)
- Field boundaries
- Guidelines
- Application maps
Note: some of these data require a GNSS- position, e.g. provided by a SR20 receiver
Call up machine data from anywhere at any time
Written by Dario LobassoAs the application is browser-based, SDF Fleet Management allows you to access all important data from your machine at all times and from any location through your smart device.
How do customers benefit by using Fleet Management?
Written by Dario Lobasso

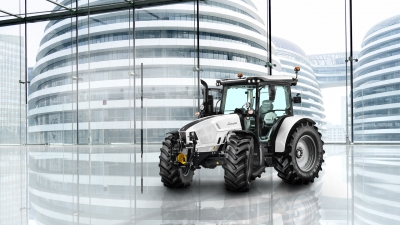

Strike Stage V
The Strike range represents the state of the art in safety, quality, performance, low management costs and comfort.
Five models, many optionals and an extreme modularity are at the base of the design, allowing everyone to tailor “the perfect tractor” to their needs. The new Strike's main features include: front and rear differential lock, 4WD and PTO hydraulically engaged, brakes on all wheels, and engines designed specifically for agricultural use.
Additional Info
- Subtitle 95-100-105-115-125
- claim Stunning, advanced and versatile.
-
design intro

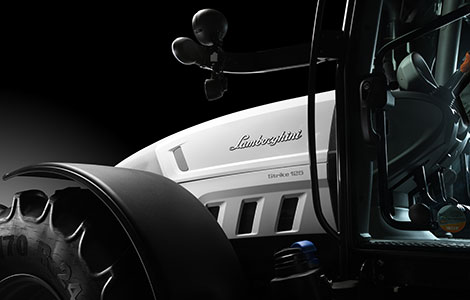

All the charm of a living legend.
-
design
With their clear profiles, the new Strike models are characterized by exclusive refinement, allowing their owners an extra touch of class that makes the difference in every situation. The modern TopVision 4-pillar cab is large, spacious and has a charming style; the revamped black and white bodywork, the lines of the new low-profile bonnet and the new two-tone roof perfectly match the Lamborghini family feeling. The user-friendly feeling can be immediately detected inside the cab, where ergonomics are expressed to the highest levels. The extremely high level of control functionality makes everyday work even more convenient and comfortable.
-
engine intro

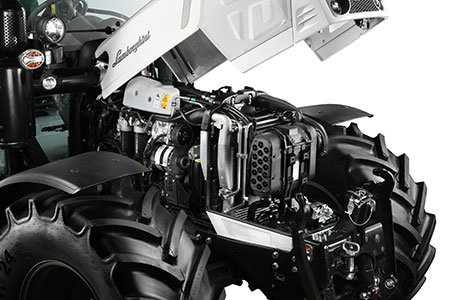

Designed for agriculture.
-
engine
The FARMotion 35 and 45 engines have been designed for agricultural use. They are offered in 3- or 4-cylinder Stage V versions, with 5 different models ranging from 95 to 126 HP. Compared to the previous models, they have higher torque curve and torque rise, to offer better performance even at low engine speed.
The main features of this series are the low rated engine speed of 2200 RPM, simple maintenance and great efficiency, obtained also with Common Rail injection up to 2000 bar.
The new injectors with 7 nozzles ensure better nebulization of the fuel, favouring better combustion able to reduce particulate production and pollutant exhaust emissions in general.
-
transmission intro

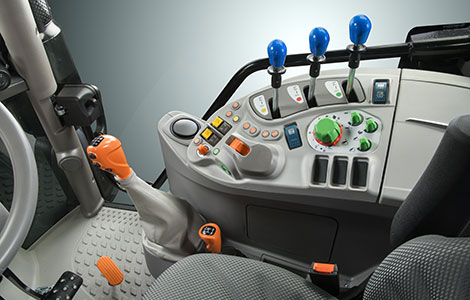

100% configurable.
-
transmission
Thanks to a truly “modular concept”, the transmission is based on 10+10 speeds, integrated on demand with a 3-step Powershift module, a hydraulic PowerShuttle with adjustable reactivity for a total of 60+60 speeds with APS (Automatic Powershift).
The models equipped with the PowerShuttle also offer the well-known "Stop&Go" system, which enhances the tractor performance and maximises productivity and efficiency even when working in narrow areas.
The PTO is electro-hydraulically engaged and has a removable shaft.
All the standardized speeds are available, in different configurations (540 / 540-540E / 540-540E-1000-1000E). The output of the groundspeed PTO is on an independent shaft, as well as the front 1000 RPM PTO.
-
hydraulic system intro

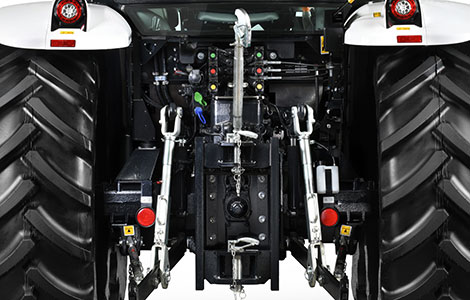

100% efficient power.
-
hydraulic system
To meet every need, two hydraulic configurations are provided, equipped with single or double pump (55 or 90 l/min oil flow) and with 4 to 6 rear outlets, mechanically controlled, with flow regulator and free oil return. On demand, a 2-way on/off distributor can be added. All the mechanical distributors are equipped with the "detent" command through a mechanical lock of the control lever. The new Strike range comes with a mechanical lift as standard, but may also be equipped as an option with an electronically controlled version with maximum height limitation, vibration damping system and the auto-PTO. The rear 3-point linkage can lift up to 5400 kg; a factory-fitted single-acting front lift with a capacity of 2100 kg may also be installed.
-
cab intro
A luxury workplace.
-

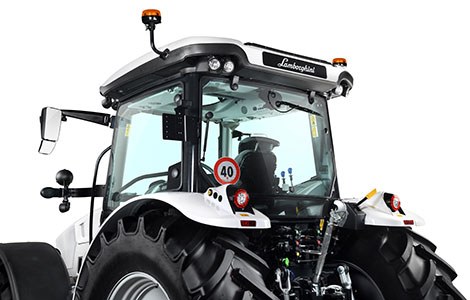

cab
The modern TopVision 4-pillar cab ensures excellent external visibility both in the daylight and in the dark, thanks to 12 LED working lights (6 front + 6 rear) installed on the new roof. A high comfort level is ensured by the innovative Hydro Silent-Blocks, able to reduce the vibration level by up to 40% at the driver’s seat, if compared with the traditional version. The tiltable and telescopic steering-wheel column and the suspended seat with several adjustable settings enable everyone to find the perfect driving position. The low noise level, as well as the high quality of materials and an excellent ergonomic layout position this cab at the highest levels of comfort.
- Sheet Version number 95|100|105|115|125
- Maximum power (hp/kW) 70/95|75/102|78/106|85/116| 93/126
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 66,4/90|71,1/97|74/101|80,6/110|88,2/120
- Maximum torque (Nm) 389|417|433|472|517
- Cylinders / displacement (n°/cc) 4/3849|3/2887|4/3849|4/3849|4/3849
- Lifting capacity (kg) 3600/4525|3600/4525|3600/4525|3600/4855|4855/5410
- Minimum width (mm) 2060
- Weight with cab (kg) 3950|3800|3950|4250|4350
- TECHNOLOGIES Stop & Go, ALL-WHEEL BRAKES, SRC
- Weight with cab (kg) 3950|3800|3950|4250|4350
-
Categorization
- Categorization Power Range Min 95
- Categorization Power Range Max 125
- Categorization Track Width Min 2060
- Categorization Track Width Max 2209
- Categorization Cylinders n. 3, 4
- Categorization Trasmission MECHANICAL, POWERSHIFT
- Stock Availability N
Incredible power and astonishing versatility in a compact package: this, in a nutshell, is the new Lamborghini Sprint family, available as both fold-down ROPS and cab variants. The new Sprint family is offered with a choice of equipment and features normally found only on bigger and more expensive tractors, making it the ideal solution for working effectively with a wide range of implements.
Additional Info
- Subtitle 50 basso - 50 - 60
- claim Top of the class in the compact segment
-
design intro

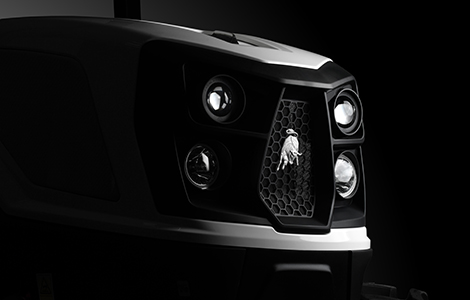

Pure Lamborghini style.
-
design
The unique, modern design gives Lamborghini Sprint tractors a decisive look to match their performance and lends a touch of class to make them stand out from the crowd in any situation. With compact, perfectly proportioned forms and a sloped cowl, the Lamborghini range of mini tractors offers a choice of unique, versatile machines which combine impeccable style with unbeatable performance.
-
engine intro

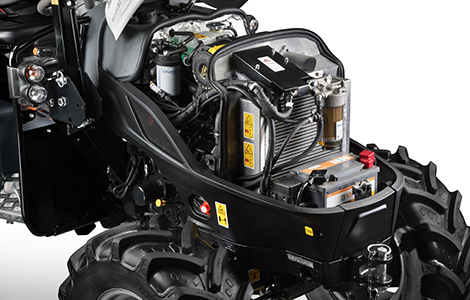

Superlative performance.
-
engine
Extremely compact and extraordinarily reliable, the 4 cylinder, 2200 cm³ engines powering the Sprint 50 and 60 feature electronically controlled Common Rail fuel injection and deliver, respectively, a maximum power output of 51 and 59 HP (at 2600 rpm) and 144 and 170 Nm of maximum torque (at 1600 rpm) . Compliance with the latest Stage V emissions regulations is ensured by a DOC catalytic converter and a passive DPF diesel particulate filter, both of which maintenance-free. Choosing a Lamborghini Sprint lets you care for the environment with no trade-off in terms of running costs.
-
transmission intro

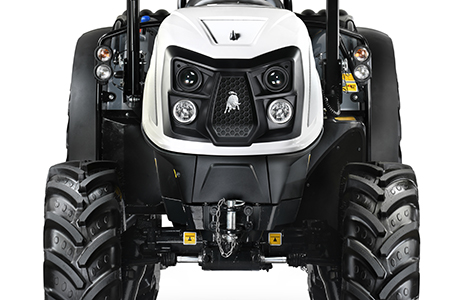

A wide choice of transmission configurations: pick the one that suits you.
-
transmission
12+12 synchronised speeds are already offered in the base configuration, while the creeper gear adds an extra 4 ultra-low ratios in both directions for a total of 16+16 speeds. Front wheel drive is selected manually from a specific control, while both differentials are lockable electronically by simply pressing a button. With a top speed of 30 km/h reached at an economical engine speed, transport by road is less time-consuming, more comfortable and more fuel efficient. The front wheels steer up to an impressive 57°, for outstanding, sure-footed agility, while a 15 l/min pump dedicated solely to the hydraulic steering circuit ensures impeccably smooth steering action even at low engine speeds.
-
hydraulic system intro
Comprehensively equipped, with extraordinarily modular configurability.
-
hydraulic system
Unparalleled versatility. Lamborghini Sprint tractors come as standard with a 30 l/min hydraulic pump dedicated to the 1200 Kg lift and the hydraulic couplers, while in the most comprehensive configuration, the hydraulic system offers six rear couplers plus two front couplers and another two belly couplers. A 540 rpm rear PTO is fitted as standard, while a 540/540 ECO/Groundspeed variant and a 540/1000/Groundspeed variant are available as options. A hydraulically engaged 1000 rpm front PTO and a 2000 rpm mechanically engaged belly PTO are also offered as options. On top of all this, an optional 600 Kg front lift may also be fitted. Extending the versatility of these small but potent tractors even further is a 40 litre fuel tank, which lets you keep on working uninterruptedly for hours on end.
-
cab intro
Class-beating comfort.
-
cab
The new Lamborghini Sprint family is available as both open versions, with a two-pillar fold-down ROPS, and enclosed versions with a spacious 4-pillar high visibility cab designed specifically by the constructor for this range of machines. The Sprint 50 is also available as a special low profile version, for even greater agililty in restricted spaces and on steep gradients. The intelligently designed interior and rational control layout offer an ergonomic working environment, while the spacious driver zone and effective air conditioning system take operator comfort even further.
- Sheet Version number 50 basso|50|60
- Maximum power (hp/kW) 51/38|51/38|59/43.5
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 51/38|51/38|59/43.5
- Maximum torque (Nm) 145|145|170
- Cylinders / displacement (n°/cc) 4/2216|4/2216|4/2216
- Lifting capacity (kg) 1200 kg
- Minimum width (mm) 1399 mm|1389 mm|1389 mm
- Weight with cab (kg) -|1810|1885
- Weight with ROPS (kg) 1385|1500|1575
- Weight with cab (kg) -|1810|1885
- Weight with ROPS (kg) 1385|1500|1575
-
Categorization
- Categorization Power Range Min 50
- Categorization Power Range Max 60
- Categorization Track Width Min 1029
- Categorization Track Width Max 1039
- Categorization Cylinders n. 4
- Categorization Trasmission MECHANICAL
- Stock Availability N
New Sprint: elegance and performance in a compact package.
Written by Lamborghini Trattori Italia
Outstanding power and high versatility in a compact package: this is, in a nutshell, the brand new Lamborghini Sprint tractors, set at the pinnacle of the compact, specialized segment.
Spire F - Now available with independent articulated quadrilateral front suspension.
Written by Lamborghini Trattori Italia
The Spire F now offers even more advanced technology than ever, with the introduction of hydropneumatic semi-active independent articulated quadrilateral front suspension.
