Tuesday, 25 July 2023 07:23

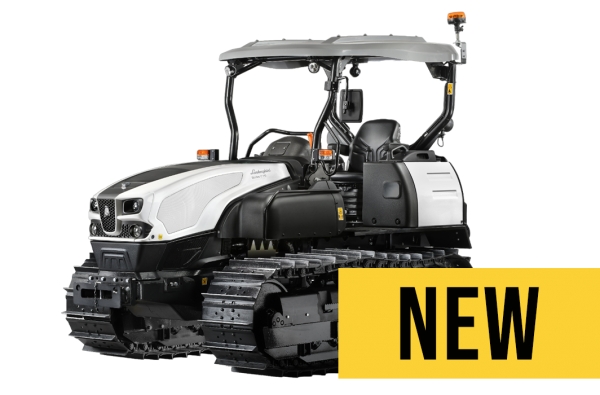

Strike C

Written by

Strike C

Monday, 24 July 2023 14:10

Strike C

Written by

Conceived to deliver unrivalled performance in heavy draft applications. the Strike C 115 crawler tractor is also the perfect tool for any other task. The undercarriage with 6 tractor rollers ensures extraordinary soil flotation, draft capacity, manoeuvrability and stability when working on gradients which would be unthinkable for any wheeled tractor. With its unmistakeable elegance and outstanding overall efficiency, the Strike C stands out from the crowd with class and character.

Additional Info

  • Subtitle 115
  • claim More comfortable and productive than ever - but also more stylish!
  • Request button Request Quotation
  • design intro

    With an impressive 116 HP on tap, the Strike C 115 is the most powerful compact crawler on sale today.

    Strike C Webpage focus Design

  • design

    450 mm wide tracks give the Strike C 115 an astonishing ground contact area of 16,650 cm², spreading the weight of the tractor over a huge area to minimise soil compaction and let it float effortlessly over even the wettest terrain. The special steel track chains (which are also available as a self-lubricating variant) are mounted on a heavy-duty undercarriage with 6 track rollers capable of withstanding exceptionally high loads.

  • engine intro

    Class-topping power and performance with total simplicity.

    Strike C Webpage focus Engine

  • engine

    The beating heart of the Strike C 115 is the FARMotion 45 engine with 2000 bar common rail injection, a turbocharger with intercooler and a viscostatic fan. The power and torque delivery curves are specifically designed for the farming sector, with impressive values: maximum engine speed is just 2200 rpm, while the maximum power output of 116 HP is achieved at 2000 rpm. The parsimonious engine and 130 litre split fuel tank let the tractor work for even longer between fuel stops. A special connection between the two sections of the tank ensures that every available litre of fuel is used, even on steep gradients and when contour-ploughing.

  • transmission intro

    Two fully synchronised variants offering 12+12 or 16+16 speeds.

    Strike C Webpage focus Transmission

  • transmission

    The Strike C 115 is equipped with a heavy-duty transmission based on a 4-speed, 2-range mechanical main gearbox, which may be mated to either a creeper (for working at a groundspeed of just 430 m/h at maximum engine speed in the lowest ratio) or an overdrive unit (to offer a total of 16 speeds in both directions). The steering clutches, new control levers and wet disc brakes ensure immediate and extremely precise manoeuvring. For uncompromised efficiency when working with any implement, the rear PTO with electrohydraulically engaged multiplate wet clutch is offered with 540 rpm + 540 ECO speed modes as standard, and with a 1000 rpm mode as an option.

  • hydraulic system intro

    Potent and reliable; a highly configurable and simple to use hydraulic system.

    Strike C Webpage focus Hydraulic system

  • hydraulic system

    On Strike C 115 tractors, the primary hydraulic circuit is fed by a 50 l/min pump, while the secondary circuit, dedicated to the steering clutches, brakes, the PTO clutch and the forced lubrication system of the transmission, receives oil from a separate 25 l/min pump. The system comes with 6 rear hydraulic couplers as standard, but can be specified with up to 10 couplers, while a flow regulator is also offered as an option. All configurations are equipped with push-pull quick couplers that allow hydraulic lines to be connected and disconnected quickly and easily, even when pressurised, making it significantly simpler to change implements. The lift capacity of the rear lift with mechanical draft control is 3170 kg at the lower link ends.

  • cab intro

    Class-beating comfort.

    Strike C Webpage focus Cab

  • cab

    The layout of the driver zone is now even more modern and comfortable, but safer too, with a sturdy 4-pillar ROPS which can also be fitted with an optional sun shade canopy and two pairs of optional halogen or LED work lights. A platform isolated effectively against vibration by 4 silent-block mounts contributes to the supreme on-board comfort. The controls are organised ergonomically into functional groups on the dashboard and the right hand console. A factory-fitted ready kit for the installation of an aftermarket cab is also available as an option, which includes a higher capacity alternator complete with wiring looms for connection to the cab, a compressor for an air conditioning system and a cab heating system.

  • Sheet Version number 115
  • Maximum power (hp/kW) 116/85
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 110/80.6
  • Maximum torque (Nm) 472
  • Cylinders / displacement (n°/cc) 4/3849
  • Lifting capacity (kg) 3170
  • Minimum width (mm) 1800
  • Weight with cab (kg) 5,350 (without ballast) / 6,245 (with max. ballast)
  • TECHNOLOGIES EGR, DOC, DPF
  • Categorization

  • Categorization Power Range Min 115
  • Categorization Power Range Max 115
  • Categorization Track Width Min 1800
  • Categorization Track Width Max 1800
  • Stock Availability N
Compare
Friday, 31 March 2023 15:06

Strike TB

Written by

Strike TB

Friday, 31 March 2023 15:01

Strike TB

Written by

The new Strike TB 105-115 tractors are perfect for olive groves, low-density fruit orchards and tunnel greenhouses. Thanks to the new FARMotion engines with outputs from 45 to 106 and 116 HP, the new range boasts both increased power and reduced polluting emissions. The new Strike TB 105-115 family offers an extraordinary choice of transmission and PTO configurations to cater perfectly for the needs of any farm.

Additional Info

  • Subtitle 105-115
  • claim Low, practical and solidly built.
  • Request button Request Quotation
  • design intro

    Unmistakeable style with power and grace.

    Strike TB Focus Design



  • design

    The design is exclusive and refined, both from an aesthetic and a functional perspective, in keeping with the distinctive style of the Lamborghini family; this, coupled with the class-beating performance and efficiency in all working conditions, enables Strike TB tractors to stand head and shoulders above their rivals in this segment.

  • engine intro

    New FARMotion 45 engines: Designed for agriculture.

    Strike TB Focus Engine

  • engine

    The FARMotion engines that power the Strike TB family have been specifically designed for use in agricultural applications, and feature state-of-the-art solutions such as Common Rail injection, turbo with intercooler and wastegate valve, plus a viscostatic fan. In order to ensure compliance with Stage V pollutant emission levels, the exhaust gas treatment system has been installed under the platform, for reduced hood dimensions. The FARMotion engine has a maximum engine speed of just 2,200 rpm, with maximum power available at 2,000 rpm, and a practically flat torque curve across a broad range of engine speeds.

  • transmission intro

    Sturdy, efficient and highly configurable.

    Strike TB Focus Transmission

  • transmission
    The basic configuration, with a 5 speed synchronised mechanical gearbox with two ranges and a synchronised reverse shuttle, offers 10+10 speeds. Adding the optional supercreeper gear or Hi-Lo gearbox increases the choice of ratios to 20+20, while adding both options offers a total of 40+40 speeds. A hydraulic reverse shuttle (PowerShuttle), with the Stop&Go function and ComfortClutch button, is also available as an option. This wide choice of configurations, combined with the range of tyre sizes available (with tyres from 24” to 30” for the rear wheels), mean that these transmissions can also offer a top speed of 40 km/h at engine speeds below 2,000 rpm.
  • hydraulic system intro

    Efficient, versatile and precise.

    Strike TB Focus Hydraulic system

  • hydraulic system

    The hydraulic system is fed by a 55 l/min pump (70 l/min available as an option) which, in addition the lift, also delivers oil to 4 couplers with mechanically controlled distributors (or 6, as an option). A supplementary pump with an impressive capacity of 35 l/min is dedicated to the steering system, and also features the SDD (Steering Double Displacement) function as standard, which doubles the steering speed. The rear lift has a maximum capacity of 3,600 kg (or 4,525 kg as an option), while the optional front lift has a capacity of up to 2,100 kg. Unrivalled PTO versatility: all four universal speed modes (540 + 540 ECO + 1000 + 1000 ECO) are standard, while a ground speed PTO, synchronised with the transmission and with independent output shaft, and a front PTO are available as options.

  • cab intro

    Comfortable and functional Extraordinarily simple controls.

    Strike TB Focus Cab

  • cab

    The layout of the driver zone offers features simple, intuitive controls (thanks also to the widely-acclaimed Lamborghini colour-coded scheme), positioned in an ergonomic, logical manner. The platform is suspended on silent-blocks for even greater comfort, while the dashboard features a practical digital-analogue display, giving the driver all the necessary information on the status and functions of the tractor. For the protection of the operator, two different types of partially-folding cab structure with two rear pillars are available.

  • Sheet Version number 105 | 115
  • Maximum power (hp/kW) 78/106 | 85/116
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 74/101 | 80.6/110
  • Maximum torque (Nm) 433 | 472
  • Cylinders / displacement (n°/cc) 4/3849 | 4/3849
  • Lifting capacity (kg) 3600/4525
  • Weight with cab (kg) 3600
  • TECHNOLOGIES Stop & Go
  • Categorization

  • Categorization Power Range Min 105
  • Categorization Power Range Max 115
  • Categorization Track Width Min 1502
  • Categorization Track Width Max 1629
  • Categorization Cylinders n. 4
  • Categorization Trasmission MECHANICAL, POWERSHIFT
  • Stock Availability N
Compare
Tuesday, 20 December 2022 08:53

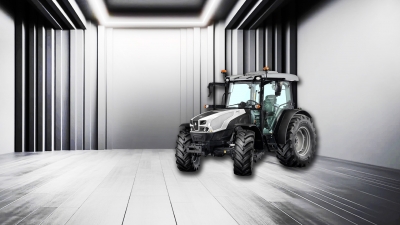

Product Range 2023

Written by

Product Range 2023

Tuesday, 30 August 2022 09:48

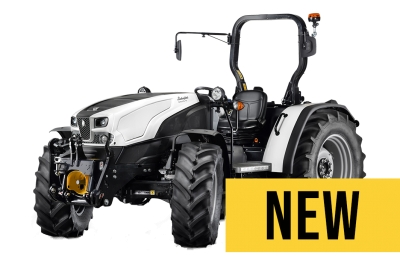

Spire F Platform

Written by

The new Lamborghini Spire F family marks an additional step forward in terms of configurability, comfort and technical features and now also includes an open station version with foldable ROPS. Important milestones include achieving the Stage V standard for emissions, without compromising on external dimensions, maintaining a sloping and tapered cowl and limiting the height of the rear mudguards. Traits designed to guarantee ultimate agility in orchards and vineyards. All of this with the superior comfort and design you've come to expect from Lamborghini.

Additional Info

  • Subtitle 90-95-100-105-115
  • claim Lamborghini Spire F: elegance meets agility
  • Request button Request Quotation
  • design intro

    When design and functionality go hand in hand.

    Spire F 115 Platform Stage V Design

  • design

    Lamborghini tractors have always been renowned for their elegant, functional design. And this tradition is continued by the new generation of machines specifically for the fruit orchard and vineyard. The results are all the more impressive considering the needs for compactness and functional capability of a specialist tractor of this type. The attractive lines of the Lamborghini Spire F also respond to the functional needs of these machines, ensuring the extraordinary agility needed for manoeuvring under trees and between narrowly spaced rows without coming into contact with vines.

  • engine intro

    3 and 4-cylinder FARMotion 35 and 45 engines for maximal productivity.

    Spire F Platform Stage V Engine

  • engine

    The 3-cylinder FARMotion 35 and 4-cylinder FARMotion 45 engines of the new Lamborghini Spire F deliver up to 116 HP in the most powerful model in the family (Spire F 115). Stage V compliance has been achieved with a combined aftertreatment system consisting of a DOC catalytic converter under the cowl and a DPF filter and SCR module located under the platform. Ideal torque and power curves are ensured by high pressure common rail fuel injection. This system delivers fuel into the combustion chamber at 2000 bar, for a more immediate response to changing load and better fuel economy.

  • transmission intro

    Maximal configuration options for the transmission and PTO.

    Spire F Platform Stage V Transmission

  • transmission
    Open station Lamborghini Spire F Stage V tractors can be configured with a wide choice of transmissions to offer the perfect solution for every task. A wide range of 4 or 5-gear options are available for those who desire a traditional mechanical transmission, while those who opt for a powershift gearbox can select the 30+30 speed Hi-Lo transmission. All 5-gear transmissions attain 40 km/h with reduced rpms, guaranteeing fuel savings during transport operations or when travelling on the road. The extraordinary versatility of these tractors also extends to the PTO. Featuring a two speed PTO as standard, these tractors can also be equipped with an optional three speed (540/540ECO/1000) or groundspeed rear PTO.
  • hydraulic system intro

    Hydraulics designed for every need.

    Spire F Platform Stage V Hydraulics

  • hydraulic system

    The specialised tractors of the Lamborghini Spire F family are equipped with a hydraulic system with a single pump or dual tandem pumps, with maximum oil flow rates ranging from 48 to 68 l/min, to respond effectively to the hydraulic needs of any application. A number of different configurations is offered, created specifically for working with the implements typically used in the vineyard. Up to 3 rear distributors are available, with free return as standard and the option of adding a flow regulator valve. The mechanically controlled rear lift has a maximum capacity of up to 3940 kg.

  • cab intro

    Ultimate comfort even on an open station tractor.

    Spire F Platform Stage V Driving Position

  • cab

    The new open station Lamborghini Spire F family features a driving area that has been completely revamped to offer the latest advances in style and ergonomics. The innovative Hydro Silent-Block suspension effectively absorbs vibrations transmitted to the seat, guaranteeing supreme comfort for the operator. The driving platform is available in two different sizes and with different shapes to better adapt to the range of tyres and remain as close to the ground as possible. With the most favourable tyres the height of the mudguards is a mere 1.18 m.

  • Sheet Version number 90|95|100|105|115
  • Maximum power (hp/kW) 67/91 | 70/95 | 75/102 | 78/106 | 85/116
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 63.5/86 | 66.4/90 | 71.1/97 | 74/101 | 80.6/110
  • Maximum torque (Nm) 372 | 389 | 417 | 433 | 472
  • Cylinders / displacement (n°/cc) 3/2887 | 4/3849 | 3/2887 | 4/3849 | 4/3849
  • Lifting capacity (kg) 3130 std 3940 (opt)
  • Minimum width (mm) 1441-1671
  • Weight with cab (kg) 3290-3880
  • Weight with ROPS (kg) 3290-3880
  • Categorization

  • Categorization Power Range Min 90
  • Categorization Power Range Max 115
  • Categorization Track Width Min 1544
  • Categorization Track Width Max 1671
  • Categorization Cylinders n. 3, 4
  • Categorization Trasmission MECHANICAL, POWERSHIFT
  • Stock Availability N
Compare
Wednesday, 04 May 2022 13:00

Spire S/V Target

Written by

Both on the road and between the rows, Spire S/V Target tractors revolutionise the way you work with exclusive, class-beating characteristics such as independent front suspension, which increases stability and safety in all terrain conditions. With their extraordinarily compact dimensions, these tractors are perfectly at home in even the most narrowly spaced fruit orchard and vineyard. This has been made possible by the unique geometry of the front axle carrier, allowing for a minimum steering radius of just 3 m. Featuring FARMotion engines 35, and with a hydraulic reverse shuttle, Stop&Go and ComfortClutch offered on the GS version, these tractors are a concentrated package of technology. The LS version, with a mechanical reverse shuttle, is extraordinarily efficient. The hydraulic and electronic systems work in concert to offer unrivalled control and stability.

Additional Info

  • Subtitle 80
  • claim A technological revolution crowned with superior driver comfort
  • Request button Request Quotation
  • design intro

    Spire S V target Design

    Lamborghini Trattori: the essence of style.

  • design

    Forms with no sharp corners or edges describe a compact, clean surfaced structure. The compact cabin is more gentle on the surrounding plants, preventing damage to the fruit while passing between the rows. With superior quality soundproofing, anti-vibration materials used for the interior trim of the cab to insulate the driver from the exterior noise and vibration, the cab of Spire S/V Target tractors is a comfortable and pleasant place to work.

  • engine intro

    The FARMotion 35 - an engine conceived for instantly responsive delivery.

  • engine

    The FARMotion 35 engines powering the Spire S/V Target family boast extraordinary efficiency and low running costs. High pressure common rail injection with 7-hole injectors ensure optimised combustion and performance at all engine speeds. To comply with Stage V emissions regulations for this power class, FARMotion 35 engines are equipped simply with an electronically controlled EGR with external exhaust gas and a maintenance-free DOC catalytic converter and DPF particulate filter. The driver can also store and recall engine speeds.

  • transmission intro

    Spire S V Target Trasmissione

    A transmission that's a pleasure to use, allowing the driver to maintain the ideal speed for any task in the professional fruit orchard and vineyard world.

  • transmission

    With 5 speeds and the ECO function, the top road speed of 40 km/h is attainable at engine economy speed, while between the rows, the creeper gear (30+15) and 3 stage Powershift gearbox (45+45) make it possible to respond to sudden peaks in load to maintain the ideal ground speed while keeping the engine operating as economically as possible. Mechanical (LS version) or hydraulic (GS version) reverse shuttle, with Stop&Go, ComfortClutch, a three or four speed PTO (540/540ECO/1000/1000ECO) and a ground speed PTO.
    Automatically managed 4WD and differential locks ensure that all the power of the engine is transferred effectively to the ground, while a potent all-wheel braking system minimises stopping distances. The short wheelbase and intelligent configuration of the front carrier allow for steering angles up to 60°.

  • hydraulic system intro

    Spire S V Target Impianto idraulico

    Demanding only the best from a hydraulic system is a must when you're working in the fruit orchard and vineyard.

  • hydraulic system

    Spire S/V Target tractors are equipped with a hydraulic system with a single pump or dual tandem pumps delivering up to 64 l/min, to deliver the superior power crucial for working with the implements typically used in these specialised applications. In addition to the 3 mechanical rear distributors with flow regulator, 4 mid-mounted couplers duplicating those at the rear are also available. The mechanically or electronically controlled rear lift has an impressive load capacity of 2600 kg, while the front lift is rated for 1500 kg.

  • cab intro

    Spire S V Target Cabina

    Agile, comfortable and completely at home between the narrow rows typical of specialised farming.

  • cab

    Spire S/V Target tractors are available with an exclusive 4-pillar cab with soft, rounded forms optimised to pass between the rows without damaging the crop. The 4 slender pillars and extensive glazing ensure excellent all-round visibility. The generous aperture angle of the door lets you get into and out of the driver seat with complete ease. For uncompromised comfort in all operating conditions, all the controls are ergonomically arranged and organised according to Lamborghini's tried-and-tested colour-coded logic for immediate identification.

  • Sheet Version number 80
  • Maximum power (hp/kW) 55.8/76
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 55.2/75
  • Maximum torque (Nm) 341
  • Cylinders / displacement (n°/cc) 3/2887
  • Lifting capacity (kg) 2800
  • Minimum width (mm) 1441
  • Weight with cab (kg) 2995
  • TECHNOLOGIES VRT, EGR, ELECTRONIC ENGINE GOVERNOR, DOC, Sense Clutch, Stop & Go, Over Speed, THREE-STAGE POWERSHIFT, ALL-WHEEL BRAKES, INDEPENDENT ARTICULATED QUADRILATERAL FRONT SUSPENSION, DTC, SELF LEVELING, ANTI DIVE AND ANTI ROLL
  • Weight with cab (kg) 2995
  • Categorization

  • Categorization Power Range Min 80
  • Categorization Power Range Max 80
  • Categorization Track Width Min 1441
  • Categorization Track Width Max 1441
  • Categorization Cylinders n. 3
  • Categorization Trasmission MECHANICAL, POWERSHIFT
  • Stock Availability N
Compare
Wednesday, 04 May 2022 08:33

Spire F Target

Written by

With an Eco transmission geared for a top road speed at economical engine speed and FARMotion 35 engines attaining Stage V compliance simply with a maintenance-free DOC and DPF, the new Spire F Target combines superlative efficiency with low running costs. The 3-cylinder engine allows for one of the shortest wheelbases in this class and unparalleled agility. A wide choice of variants, with cab or platform and with fixed or suspended front axle, caters for the needs of any fruit or wine farmer.

Additional Info

  • Subtitle 80
  • claim Class-beating efficiency and agility
  • Request button Request Quotation
  • design intro

    Spire F Target Design

    An original design which protects the fruit orchard and maximises comfort.

  • design

    As well as expressing the distinctive character of the Spire F Target family of tractors, the soft lines of the engine hood, cab and mudguards, with no sharp corners or edges, ensure safe passage between the rows and prevent damage to overhanging branches. The interior also boasts impeccable design, with quality finish and materials chosen to improve operator comfort.

  • engine intro

    Technology in pride of place for extraordinary performance.

  • engine

    Opting for simple, intelligent technology, FARMotion engines employ innovative solutions such as electronically controlled external exhaust gas recirculation EGR, a DOC catalytic converter and 2000 Bar high pressure common rail injection to deliver the power and performance to tackle any task, combined with lower fuel consumption and compliance with Stage V regulations. These are flexible engines offering the perfect response for the challenging tasks typical of fruit farms, arboriculture and nurseries. These tractors are also a pleasure to drive, as the driver can save ideal engine speeds for different implements and recall them when needed. The electronic governor then maintains the engine speed selected regardless of load, maximising productivity.

  • transmission intro

    Spire F Target Trasmissione

    A simply perfect transmission for the perfect speed for the job, whether working between the rows or transporting by road.

  • transmission

    A 5 speed transmission with effortless, precise shift action, ideally spaced ratios and the “ECO” function, which saves fuel at maximum road speed by keeping the engine within the most efficient operating range. Also available as a version with a 30+15 speed fully mechanical gearbox and an underdrive offering up to 3 ranges (with supercreeper) and 3 powershift ratios, for a total of 45 forward and 45 reverse speeds. The transmission is available as an LS version, with mechanical reverse shuttle, or GS version, with hydraulic reverse shuttle, Stop&Go and ComfortClutch function, 3-speed PTO (540/540ECO/1000) and a ground speed PTO. The AUTO 4WD system offers extraordinary traction and, in conjunction with the all-wheel braking system, maximises safety.

  • hydraulic system intro

    Spire F Target Impianto idraulico

    A flexible hydraulic system responding to the diverse needs of implements typically used in the fruit orchard.

  • hydraulic system

    To cater for specialised farming applications such as fruit orchards, vineyards and nurseries, Spire F Target tractors are equippable with a hydraulic system with a single pump or dual tandem pumps with a flow rate of up to 64 l/min. A choice of different hydraulic coupler configurations also caters for every possible need. These tractors come as standard with 3 rear distributors with flow regulator, while up to 4 mid-mounted hydraulic couplers with free return can be added as an option. With a maximum load capacity of 2800 kg, the rear lift can take even the most challenging job in its stride.

  • cab intro

    Spire F Target Cabin

    The cab of the Spire F Target combines functionality with freedom of movement for extraordinary comfort.

  • cab

    A spacious cab offering all the room the driver needs and total all-round visibility, despite the limited width of this type of tractor. The ergonomically designed controls are arranged rationally around the driver and colour-coded for immediate identification.
    An array of directional vents maintain the ideal temperature in the cab. The compact wheelbase and impressive steering angle are ideal for working in tight spaces. Spire F Target tractors are also available as platform versions, with two different platform variants offered to cater for different rear wheel sizes.

  • Sheet Version number 80
  • Maximum power (hp/kW) 55.8/76
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 55.2/75
  • Maximum torque (Nm) 341
  • Cylinders / displacement (n°/cc) 3/2887
  • Lifting capacity (kg) 2800
  • Minimum width (mm) 1441
  • Weight with ROPS (kg) 2995
  • TECHNOLOGIES EGR, ELECTRONIC ENGINE GOVERNOR, DOC, Sense Clutch, Stop & Go, Over Speed, THREE-STAGE POWERSHIFT, ALL-WHEEL BRAKES, INDEPENDENT ARTICULATED QUADRILATERAL FRONT SUSPENSION, DTC, SELF LEVELING, ANTI DIVE AND ANTI ROLL
  • Weight with ROPS (kg) 2995
  • Categorization

  • Categorization Power Range Min 80
  • Categorization Power Range Max 80
  • Categorization Track Width Min 1441
  • Categorization Track Width Max 1441
  • Categorization Cylinders n. 3
  • Categorization Trasmission MECHANICAL, POWERSHIFT
  • Stock Availability N
Compare
Friday, 01 April 2022 08:51

Spire

Written by

Spire

Thursday, 31 March 2022 16:26

Spire

Written by

The new Spire is a versatile and extraordinarily agile tractor which offers all the capabilities you need to make working in both the field and around the farm simpler and easier with unmistakeable Lamborghini style and character. Spire is equipped with new FARMotion 45 engines that ensure power and lower consumption, respecting the environment.

Additional Info

  • Subtitle 95 - 105
  • claim Style and versatility.
  • Request button Request Quotation
  • design intro

    Lamborghini Trattori: the essence of style.

    Lamborghini Trattori Spire 115 Stage V Design

  • design

    Forms with no sharp corners or edges describe a compact, clean surfaced structure. With superior quality soundproofing and anti-vibration materials used to insulate the interior of the cab from external noise and vibration, the cab of a Spire tractor is a comfortable and pleasant place to work.Each detail reveals the care that was taken to transmit the quality and sophistication typical of the Lamborghini Trattori brand.

  • engine intro

    Performance and efficiency while respecting the environment.

    Lamborghini Trattori Spire 115 Stage V Engine

  • engine

    The new Spire has a four cylinder latest generation FARMotion 45 engine, specially designed for farming, which is defined by a narrower width and less noise and consumption. In fact, the new shape of the heads and the combustion chambers—with 2,000-bar Common Rail Bosch system—improves the gasoline combustion process, optimising engine potential and using the least amount of fuel. New preheating system facilitates cold starts even in the coldest climates.

  • transmission intro

    Total control in all situations.

    Lamborghini Trattori Spire 115 Stage V Trasmissione

  • transmission

    The versatility, efficiency and practicality of Spire are also evident in the transmission with a total of 30+15 thanks to the underdrive. With the three-ratio Powershift, without using the clutch, you can reach one of the 45 available speeds, both going forward, and backing up. The Stop&Go system of the hydraulic reverse shuttle also allows you to stop the tractor and start going again fluidly and without jerking, making work easier both in the barn and in haying time. The operational quality of Spire also stands out on the road, thanks to Overspeed technology, which enables it to reach a speed of 40 km/h at economic engine speed.

  • hydraulic system intro

    Perfectly calibrated hydraulic system

    Lamborghini Trattori Spire 115 Stage V Hydraulics

  • hydraulic system

    To allow maximum efficiency and the best use of equipment, the new Spire has an open centre hydraulic system with a 54 l/min pump and 6-way auxiliary distributors with flow regulator. The rear lift, also available with electronic control, has a maximum capacity of 3600 kg, while the optional front linkage, with a capacity of 2100 kg, is equipped with a front PTO to work with front-mounted and combination implements. The PTO, with electro-hydraulic control and available in three speeds (540/540E/1000), enables the use of any equipment with high efficiency and low operating costs. A ground speed PTO with forward speed is also available as an option for operating trailers with a trailing axle.

  • cab intro

    Visibility and comfort exalted by Lamborghini style

    Lamborghini Trattori Spire 115 Stage V Cab

  • cab

    The Spire Stage V possesses all the perks that define it as an authentic Lamborghini. With its high visibility roof and just 4 pillars, the cab offers perfect control in all directions. The driver's seat is equipped with air suspension to perfectly adapt to the weight and height of the driver and distinguishes itself for its great comfort. All the controls are arranged ergonomically in a colour-coded layout within easy reach of the driver.

  • Sheet Version number 95|105
  • Maximum power (hp/kW) 70/95|78/106
  • Homologated power (2000/25/EC) at rated engine speed (hp/kW) 66.4/90|74/101
  • Maximum torque (Nm) 389|433
  • Cylinders / displacement (n°/cc) 4/3,849
  • Lifting capacity (kg) 3000 (3600 opt.)
  • Minimum width (mm) 1800
  • Weight with cab (kg) 3275-3875
  • TECHNOLOGIES EGR, DOC, Sense Clutch, Stop & Go, Over Speed, THREE-STAGE POWERSHIFT, ALL-WHEEL BRAKES, PARK-BRAKE, DAMPING CONTROL
  • Weight with cab (kg) 3275-3875
  • Categorization

  • Categorization Power Range Min 95
  • Categorization Power Range Max 105
  • Categorization Track Width Min 2007
  • Categorization Track Width Max 2007
  • Categorization Cylinders n. 4
  • Categorization Trasmission MECHANICAL, POWERSHIFT
  • Stock Availability N
Compare
Page 1 of 11

Stay in touch

Receive news and notification of initiatives and promotions
