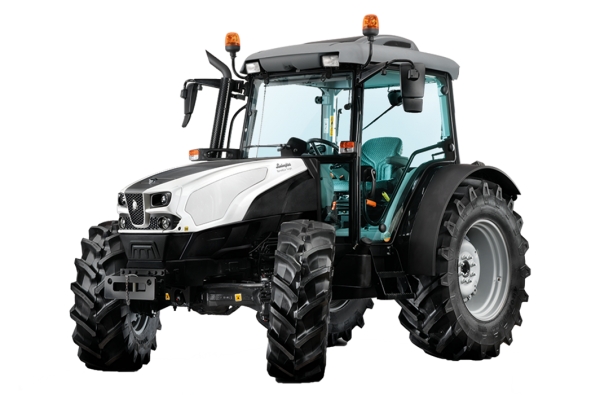

Spire Target
Already acclaimed for its versatility and agility, the Spire Target family now features new FARMotion engines. With the potent 90.4 version, this family not only offers the ideal answer for working in restricted spaces but also for more challenging tasks. Spire Target also delivers comfort to match its performance, with an ergonomically designed four-pillar cab offering superb all-round visibility. In addition, thanks to the low centre of gravity and the integral four wheel brake system, it offers considerable safety even when working on steep slopes.
Additional Info
- Subtitle 70 - 80 - 90 - 90.4
- claim Versatility and simplicity for any type of use
-
design intro
Its quality is visible and makes a difference
-
design

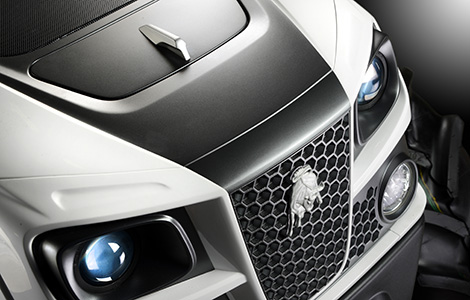

Like all Lamborghini tractors, the Spire Target boasts a white livery, a low profile cowl and distinctive air intakes and lights. Each detail reveals the care that was taken to transmit the quality and sophistication typical of the Lamborghini Trattori brand.
-
engine intro
An engine conceived for farming
-
engine
Spire Target tractors are powered by the new FARMotion engine, which was developed specifically for agriculture and meets the requirements of Stage III B emissions regulations. A latest generation compact 3 or 4 cylinder Common Rail (2000 bar) engine, able to generate high performance and constant power in any operating conditions. The new head and combustion chamber geometry also helps to improve the diesel combustion process, exploiting all the potential of the engine and reducing consumption. Respect for the environment is ensured by the EGR external exhaust gas recirculation system and the DOC post-treatment system.
-
transmission intro
Simple and dependable
-
transmission
Spire Target tractors are offered with a mechanical reverse shuttle and either a 10+10 speed transmission (with a 5 speed gearbox and 2 work ranges), or a 30+15 speed transmission with underdrive and supercreeper. Both differential locking and dual traction insertion are mechanical and provide, whenever necessary, the greatest possible traction. -
hydraulic system intro
Work easily with any implement
-
hydraulic system
Spire Target tractors are designed to make working with any implement easier. For this reason it is fitted with a 42 l/min hydraulic system and 4 or 6 way mechanical distributors that contribute to optimum load management. The rear lifter has a lifting capacity of 2650 kg which can be increased to 3600 kg with optional auxiliary jacks. The wide range of PTO speeds available (540-540ECO-1000 and ground speed PTO) provide all the flexibility required for any piece of equipment.
-
cab intro
Visibility and comfort exalted by Lamborghini style
-
cab
Every aspect of the Spire Target is conceived for uncompromised functionality and operator comfort. The 4-upright cab ensures optimal visibility for perfect control of the entire surrounding area. Perfect handling of this tractor range is ensured by controls arranged in an intuitive manner and by colour coding that groups them by functionality.
- Sheet Version number 70 | 80 | 90 | 90.4
- Maximum power (hp/kW) 75/55,4 | 88/65 | 88/65 |88/65
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 75/55,4 | 84/61,6 | 84/61,6 | 84/61,6
- Maximum torque (Nm) 341 | 354 | 354 | 354
- Cylinders / displacement (n°/cc) 3/2887 | 3/2887 | 4/3849 | 4/3849
- Lifting capacity (kg) 3000 (std) / 3600 (opt) | 3000 (std) / 3600 (opt) | 3000 (std) / 3600 (opt) | 2650 (std) / 3600 (opt)
- Minimum width (mm) 1940 | 1940 | 2005 | 2005
- Weight with cab (kg) 3200 | 3200 | 3300 | 3300
- TECHNOLOGIES DCR, ELECTRONIC ENGINE GOVERNOR, Stop & Go, Over Speed
- Weight with cab (kg) 3200 | 3200 | 3300 | 3300
-
Categorization
- Categorization Power Range Min 70
- Categorization Power Range Max 100
- Categorization Track Width Min 1460
- Categorization Track Width Max 1900
- Categorization Cylinders n. 3, 4
- Categorization Trasmission MECHANICAL, POWERSHIFT
- Stock Availability N
Spire
Spire Trend

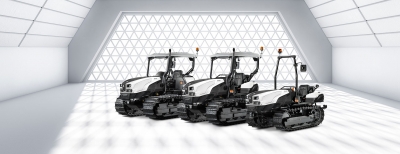

Crawlers
Hannover (Germany), 12th November 2017

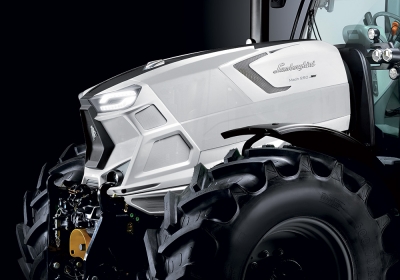

Lamborghini Trattori has increased its product offering with the new Spark and Mach models extending the power range, with the unmistakeable style of the Italian brand.
Intelligent systems for leading-edge agriculture
Written by Web SupportA new set of digital functions and services to help farmers and contractors to improve the productivity of their farming activities and the efficiency of their fleet.
New digital services.
State of the art technology, outstanding performance and unparalleled comfort.

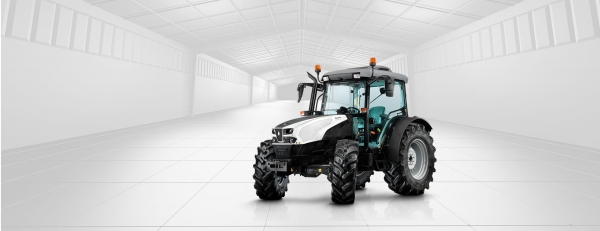

The Strike range offers a comprehensive choice of 8 models to let crop farmers, livestock breeders and agricultural contractors define the perfect configuration for any field or general farmyard task. The ideal weight distribution of the Strike LD and MD lets them deliver the superior performance necessary for working on the modern farm, in applications such as minimum tillage and sod-seeding, while the sturdily built Strike HD is the ideal solution for soil treatment work in the open field.
Additional Info
- Subtitle 80 - 90 - 90.4 - 100 - 110 - 120
- claim Modern, high-tech and versatile
-
design intro

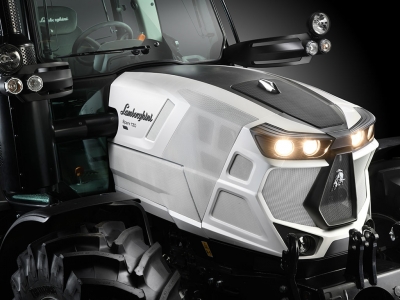

An elegant design from the lines of the hood to the interior trim. All in true Lamborghini style.
-
design
You'd be hard pressed to find fault in the style of the Strike; the white livery of the bodywork and sleek, low lines of the hood make an immediate impression. Once inside the cab, all the efforts to make these tractors as intuitive and simple to use are immediately apparent, with ergonomic, functional solutions conceived for total comfort in the day to day work in the field.
-
engine intro
Advanced new technology beneath the hood of the Strike.
-
engine
Impressive power available over an extended range of engine speeds and immediate responsiveness, to cope with sudden peaks in load and ensure extraordinary productivity: presenting the new FARMotion engine family, available as 3 or 4 cylinder variants with 2000 bar Common Rail fuel injection. HD models are powered by Stage IV compliant engines, with an SCR exhaust after-treatment system, while MD and LD versions are equipped with the Stage III B compliant engine, with a DOC catalytic converter. This extraordinary combination of technologies translates to ideal performance both in the field and on the road. The electronic control unit of the engine lets the driver set, store and recall two different engine speeds to simplify headland turns.
-
transmission intro
A choice of three transmissions to ensure the ideal speed for any task.
-
transmission
Every agricultural task needs a specific range of speeds. The Strike family offers a choice of three different transmissions - with mechanical, Hi-Lo or Powershift variants - to ensure the ideal speed range for every agricultural task and for successful results whether working in the field or on the road. The mechanical gearbox has four or five gears with underdrive and supercreeper gear, thus reaching 16+16 or 20+20 speed. The Hi-Lo version with creeper and supercreeper gears offers 32+32 speeds, or 40+40 speeds with an additional two powershift stages. The 5 speed transmission with four ranges and 3 stage Powershift (30+30 or 60+60) ensures rapid shift action to maintain any speed needed. The four speed PTO (540/540ECO/1000/1000ECO), the transmission-synchronised PTO with independent output shaft and the 1,000 rpm front PTO ensure unparalleled productivity.
-
hydraulic system intro
A hydraulic system that adjusts flow rate rapidly and in real time for precise, instantaneous implement control.
-
hydraulic system
A hydraulic system built to deliver 56 l/min for operating implements with extraordinary efficiency. However, the capabilities of the system may be extended even further with an innovative 60ECO dual pump, which already offers a flow rate of 65 l/min at an engine speed of just 1600 rpm. Strike 110 HD and Strike 120 HD are also available with a hydraulic system with a 90 l/min dual pump. A mechanically controlled rear lift is offered in the basic configuration (while an electronically controlled lift is available as an option), for a maximum lifting capacity of 4,525 kg for LD-MD models or, to cater for applications demanding even greater lifting power, 5,410 kg in the case of the HD model. The system is available with 4, 6 or 8 way rear distributors, 2 of which with electrohydraulic proportional control.
-
cab intro
An ultra-modern comfort-oriented cab mounted on innovative rear "Hydro Silent-Blocks", which drastically reduce vibration.
-
cab
Inside the eye-catching, comfortable cab, the intuitive, ergonomic controls are arranged on the right hand side of the driver and are colour-coded for instant identification. The new distributor levers with improved action offer effective control over oil flow and are lockable in the kick-out position. The driver zone is comfortable and spacious, while the generously sized windscreen and windows and the high visibility roof offer an unimpeded all-round view, which is especially helpful when working with a front loader. "Hydro Silent-Blocks" and excellent insulation from the engine makes the cab extremely quiet and comfortable, whether working in the field or driving at high speed on the road. These tractors are just as much of a pleasure to drive at night, with 6 lights on the grille, 2 lights at mid height on the front cab pillar, 2 lights at the front of the cab roof and 4 at the rear. The electronic battery master disconnect switch is situated inside the cab.
- Sheet Version number 80 LD | 90 LD | 90 MD | 90.4 MD |100 MD | 110 MD | 110 HD | 120 HD
- Maximum power (hp/kW) 75/55,4 | 88/65 | 88/65 | 88/65 | 102/75 | 113/83 | 106/78 | 116/85
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 75/55,4 | 84/61,7 | 84/61,7 | 84/61,7 | 97/71,5 | 109/79 |101/74 | 110/80,6
- Maximum torque (Nm) 342 | 354 | 354 | 354 | 408 | 435 | 424 | 462
- Cylinders / displacement (n°/cc) 3/2.887 | 3/2.887 | 3/2.887 | 4/3.849 | 4/3.849 | 4/3.849 | 4/3.849 | 4/3.849
- Lifting capacity (kg) 4525
- Minimum width (mm) 2068
- Weight with cab (kg) 3600 | 3620 | 3800 | 3900 | 3920 | 3920 | 4220 | 4320
- TECHNOLOGIES EGR, DOC, Sense Clutch, Stop & Go, ALL-WHEEL BRAKES, SRC
- Weight with cab (kg) 3600 | 3620 | 3800 | 3900 | 3920 | 3920 | 4220 | 4320
-
Categorization
- Categorization Power Range Min 80
- Categorization Power Range Max 120
- Categorization Track Width Min 2037
- Categorization Track Width Max 2402
- Categorization Cylinders n. 3, 4
- Categorization Trasmission MECHANICAL, POWERSHIFT
- Stock Availability Y

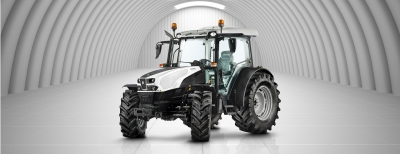

Both on the road and between the rows, Spire S/V tractors revolutionise the way you work with exclusive,
class-beating characteristics such as independent front suspension, which increases stability and safety in all terrain conditions. With their extraordinarily compact dimensions, these tractors are perfectly at home in even the most narrowly spaced fruit orchard and vineyard. This has been made possible by the unique geometry of the front axle carrier, allowing for a minimum steering radius of just 3 m. Featuring FARMotion engines, and with a hydraulic reverse shuttle, Stop&Go and ComfortClutch offered on the GS version, these tractors are a concentrated package of technology. The LS version, with a mechanical reverse shuttle, is extraordinarily efficient. The hydraulic and electronic systems work in concert to offer unrivalled control and stability.
Additional Info
- Subtitle 80 - 90 - 90.4 - 100 - 105 - 115
- claim A technological revolution crowned with superior driver comfort
-
design intro
Lamborghini Trattori: the essence of style.
-
design
Forms with no sharp corners or edges describe a compact, clean surfaced structure. The compact cabin is more gentle on the surrounding plants, preventing damage to the fruit while passing between the rows. With superior quality soundproofing, anti-vibration materials used for the interior trim of the cab to insulate the driver from the exterior noise and vibration, the cab of Spire S/V tractors is a comfortable and pleasant place to work.
-
engine intro
FARMotion engines - the result of a continuous pursuit of immediate response.
-
engine

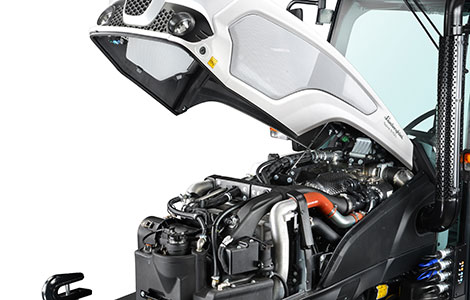

Flexible engines delivering the impressive torque needed for working between the rows of the fruit orchard and vineyard with implements such as atomisers and in-row cultivators with readily available power at all times and impressive fuel economy. Common Rail injection, 7 hole injectors and a new intake manifold geometry improving the flow of air into the engine optimises combustion for superlative performance at all engine speeds. To ensure compliance with Stage 3B emissions regulations, FARMotion engines are equipped with electronically controlled EGR with external exhaust gas recirculation and a DOC catalytic converter. The driver can also store and recall engine speeds.
-
transmission intro
A transmission that's a pleasure to use, allowing the driver to maintain the ideal speed for any task in the professional fruit orchard and vineyard world.
-
transmission

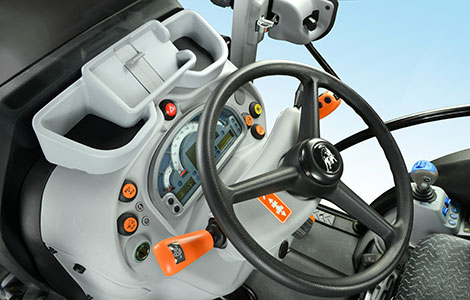

With 5 speeds and the ECO function, the top road speed of 40 km/h is attainable at engine economy speed, while between the rows, the creeper gear (30+15) and 3 stage Powershift gearbox (45+45) make it possible to respond to sudden peaks in load to maintain the ideal ground speed while keeping the engine operating as economically as possible. Mechanical (LS version) or hydraulic (GS version) reverse shuttle, with Stop&Go, ComfortClutch, a three or four speed PTO (540/540ECO/1000/1000ECO) and a ground speed PTO. Automatically managed dual traction and differential locks ensure that the power of the engine is transferred effectively to the ground, while a potent all-wheel braking system minimises stopping distances.
-
hydraulic system intro
Demanding only the best from a hydraulic system is a must when you're working in the fruit orchard and vineyard.
-
hydraulic system

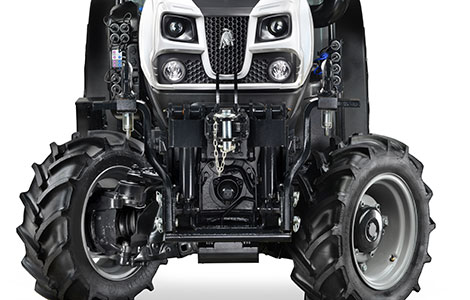

Spire S/V tractors are equipped with a hydraulic system with a single pump or dual tandem pumps delivering up to 64 l/min, to ensure the crucial power needed for working with the implements typically used in these specialised applications. a choice of a 6-way system with 3 mechanical distributors or with 4-ways duplicated by the rear distributors, available in the following configurations: 4-ways with two mechanical distributors for belly mounted implemented, or 6-ways with two electrohydraulic distributors plus a duplicated distributor with flow regulator. Category 2 rear lift transformable into a Category 1 lift with mechanical hitch or mechanically or electronically controlled automatic hitch, for an impressive lifting capacity of 2,600 kg. Rear linkages fastened to the link carrier pin with a torsion damping link system, and adjustable lower link ends.
-
cab intro
Agile, comfortable and completely at home between the narrow rows typical of specialised farming.
-
cab

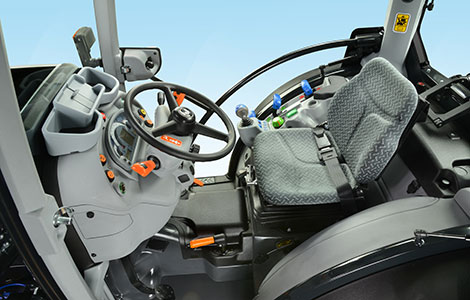

The short wheelbase and special configuration of the front carrier make steering angles of up to 60° possible. The cab is pressurised to protect the driver effectively when applying chemical crop treatments, while the air conditioning system keeps the interior comfortable even when working in high temperature conditions in summer. The Spire S version is available with a choice of 2 platforms: a broader variant for 28" tyres, and a narrower version for wheels with 20" tyres, which also allows the use of 24" tyres to ensure a lower overall height but with more interior space. All the controls are ergonomic and easy to identify. The generously sized windscreen and windows ensure extraordinary all-round visibility. Spire V tractors may be equipped with a 20" platform; this variant is the lowest, narrowest model in the entire range, while still offers extraordinary agility and versatility.
-
highLight Box
SPECIALISED TECHNOLOGY
Innovative hydraulic system and independent wheel front suspension.
A revolutionary hydraulic system with 3 selectable levels and a flow rate of up to 131 l/min To be competitive, the hydraulic system of a tractor must offer the following: generous, programmable flow rate; precise, rational distributor controls; an adequate number of couplers both at the rear and front of the tractor; the ability to merge multiple functions in a single controller and, above all, a modular design allowing the machine to be configured to meet the specific needs of the customer. Lamborghini Trattori has stepped up to the challenge, offering three new dedicated hydraulic systems for its specialised models: High-Flow, Power-Flow and Setting-Flow.

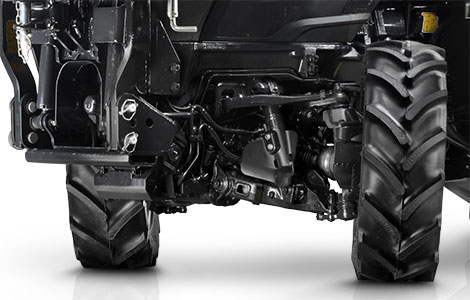

In addition to all this technology, Lamborghini specialised vineyard and orchard tractors are now also equipped with hydropneumatic independent front suspension with active control. A dedicated electronic control unit adjusts the spring and damping rate for each individual wheel, resulting in a suspension system with extraordinarily effective dynamic behaviour that ensures outstanding precision in mechanised canopy management. - Sheet Version number 80 | 90 | 100 | 90.4 | 105 | 115
- Maximum power (hp/kW) 75/55.4|88/65|96/71|88/65|102/75|113/83
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 75/55.4|83/61.5|91/67|84/61.8|97/71.5|107/79
- Maximum torque (Nm) 342|354|369|354|408|435
- Cylinders / displacement (n°/cc) 3/2887|3/2887|3/2887|4/3849|4/3849|4/3849
- Lifting capacity (kg) 2600|2600|2600|2600|2600|2600
- TECHNOLOGIES ELECTRONIC ENGINE GOVERNOR, Sense Clutch, Stop & Go, THREE-STAGE POWERSHIFT, ALL-WHEEL BRAKES, INDEPENDENT ARTICULATED QUADRILATERAL FRONT SUSPENSION, DTC, DAMPING CONTROL, SWING EFFECT
- Weight with cab (kg) S: 2688-3020 V: 2709-2950| S: 2688-3020 V: 2709-2950| S:2808-3140 V:2829-3070| S: 2688-3020 V: 2709-2950| S:2808-3140 V:2829-3070| S:2808-3140 V:2829-3070
-
Categorization
- Categorization Power Range Min 80
- Categorization Power Range Max 115
- Categorization Track Width Min 1290
- Categorization Track Width Max 1461
- Categorization Cylinders n. 3, 4
- Categorization Trasmission MECHANICAL, POWERSHIFT
- Stock Availability Y
